S7-200 SMART Digital I/O SM DR16, 8DI/8DO Relay
Description

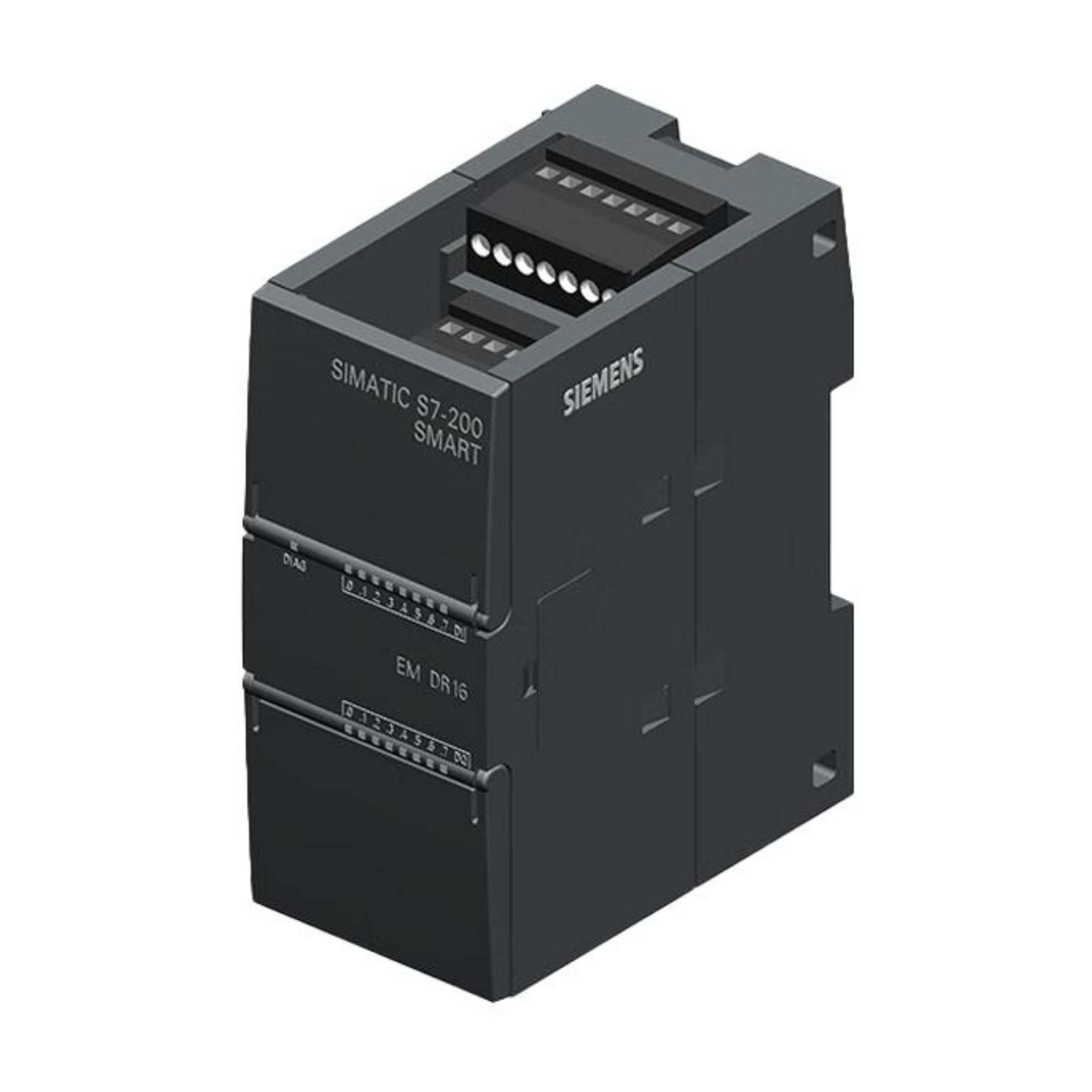

SIMATIC S7-200 SMART SM DR16 Digital I/O Module (Relay)
❝AVAILABLE MODELS❞
Part Number: 6ES7288-2DR16-0AA0
Type: Signal Module (Digital I/O – Relay)
Product Name: SM DR16
❝PRODUCT DETAILS❞
➜ SM DR16 is a digital I/O expansion module designed for SIMATIC S7-200 SMART PLC systems, providing both input and output capability in a single module.
➜ It offers 8 digital inputs and 8 relay outputs, enabling flexible control and signal acquisition in compact automation systems.
➜ The relay outputs allow switching of AC/DC loads such as contactors, solenoids, alarms, and indicator devices.
➜ The module is ideal for applications requiring balanced I/O expansion with isolated relay switching.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7288-2DR16-0AA0
➜ System: S7-200 SMART
➜ Module Type: Digital I/O Signal Module
➜ Inputs: 8 DI
➜ Outputs: 8 DO (Relay Type)
➜ Relay Output Isolation
➜ AC/DC Load Switching Support
➜ Compact Modular Design
➜ High Reliability Industrial Use
➜ Easy Plug-in Expansion
➜ STEP 7 Micro/WIN SMART Compatible
❝PRODUCT APPLICATIONS❞
➜ Machine Automation Systems
➜ Conveyor Systems
➜ Packaging Machinery
➜ Textile Machines
➜ Pump Control Systems
➜ HVAC Automation
➜ OEM Machinery
➜ Industrial Control Panels
➜ Material Handling Systems
➜ Production Line Automation
➜ Utility Automation
➜ General Industrial Automation
❝PRODUCT❞
➜ 6ES7288-2DR16-0AA0 – SM DR16 Digital I/O Module
➜ S7-200 SMART CPU Series (SR/CR Models)
➜ Siemens HMI SMART Panels
➜ Sensors & Field Devices
➜ Relays & Contactors
➜ Industrial Drives
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7288-2DR16-0AA0 | Digital I/O SM DR16, 8DI/8DO Relay |
