S7-200 SMART Analog Input SM AR02 RTD, 2 AI
Description

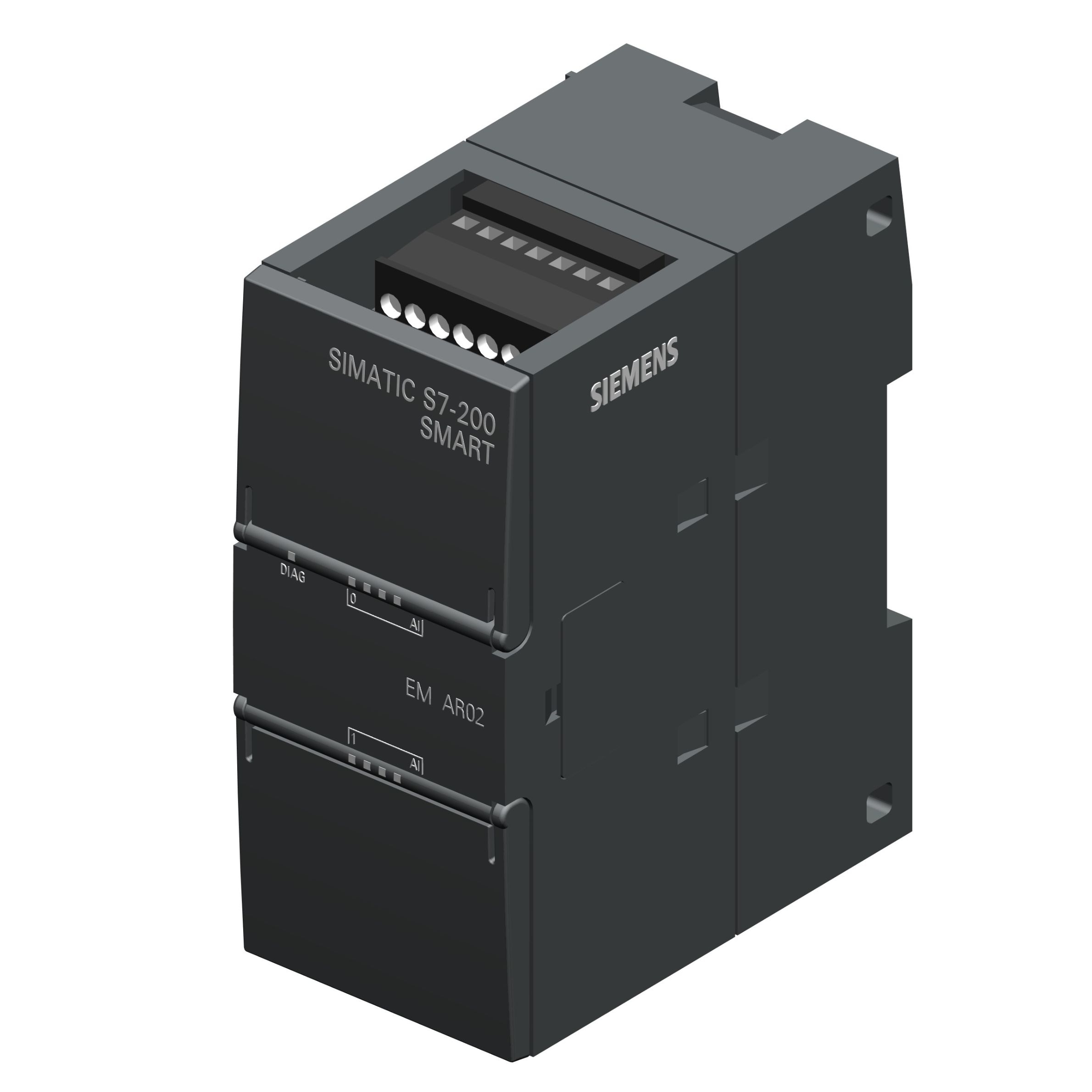

SIMATIC S7-200 SMART SM AR02 Analog Input Module (RTD)
❝AVAILABLE MODELS❞
Part Number: 6ES7288-3AR02-0AA0
Type: Signal Module (Analog Input – RTD)
Product Name: SM AR02
❝PRODUCT DETAILS❞
➜ SM AR02 is an analog input signal module designed for SIMATIC S7-200 SMART PLC systems, used for temperature measurement applications.
➜ It provides 2 RTD (Resistance Temperature Detector) analog input channels for precise temperature monitoring.
➜ The module supports industrial temperature sensors such as PT100/PT1000 (depending on configuration), commonly used in process and machine automation.
➜ It is ideal for applications requiring accurate and stable temperature measurement in harsh industrial environments.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7288-3AR02-0AA0
➜ System: S7-200 SMART
➜ Module Type: Analog Input Signal Module (RTD)
➜ Inputs: 2 AI (RTD)
➜ Sensor Type: RTD (e.g., PT100/PT1000 supported)
➜ High Accuracy Temperature Measurement
➜ Compact Modular Design
➜ Industrial-Grade Signal Processing
➜ Easy Integration with CPU
➜ STEP 7 Micro/WIN SMART Compatible
❝PRODUCT APPLICATIONS❞
➜ Process Temperature Monitoring
➜ Machine Automation Systems
➜ HVAC Systems
➜ Furnace & Oven Control
➜ Plastic Injection Molding Machines
➜ Food Processing Equipment
➜ Chemical Industry Systems
➜ Packaging Machinery
➜ OEM Equipment
➜ Energy Management Systems
➜ Industrial Control Panels
➜ Factory Automation
❝PRODUCT❞
➜ 6ES7288-3AR02-0AA0 – SM AR02 RTD Analog Input Module
➜ S7-200 SMART CPU Series
➜ PT100 / RTD Temperature Sensors
➜ HMI Monitoring Systems
➜ Industrial Controllers
➜ Process Automation Devices
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7288-3AR02-0AA0 | Analog Input SM AR02 RTD, 2 AI |
