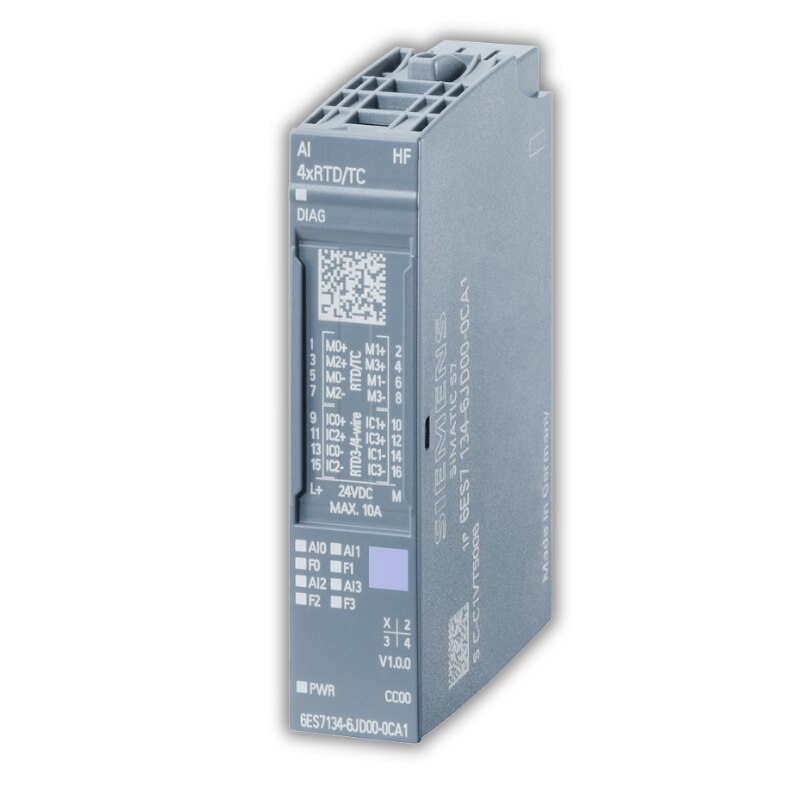

SIMATIC ET 200SP AI 4xRTD/TC 2-/3-/4-Wire HF
Description
SIMATIC ET 200SP AI 4xRTD/TC HF
❝AVAILABLE MODELS❞
Part Number: 6ES7134-6JD00-0CA1
Type: Analog Input Module
Product Name: AI 4xRTD/TC 2-/3-/4-Wire HF
❝PRODUCT DETAILS❞
➜ This is a SIMATIC ET 200SP high-feature analog input module designed for temperature measurement in distributed I/O systems used in industrial automation applications.
➜ The module supports 4 analog input channels for RTD (Resistance Temperature Detector) and thermocouple (TC) sensors, enabling precise temperature acquisition in process control systems.
➜ It supports 2-wire, 3-wire, and 4-wire RTD configurations, as well as thermocouple types, providing high flexibility for temperature monitoring applications.
➜ It is used in ET 200SP stations and communicates via PROFINET through an interface module (IM 155-6 series), ensuring accurate and reliable distributed temperature measurement.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7134-6JD00-0CA1
➜ System: ET 200SP
➜ Module Type: Analog Input Module (HF – High Feature)
➜ Inputs: 4 AI
➜ Signal Types: RTD / Thermocouple
➜ Wiring Support: 2-/3-/4-Wire RTD
➜ High-Feature Precision Module
➜ High-Accuracy Temperature Measurement
➜ Compact DIN Rail Mounting
➜ Fast Signal Processing
➜ Hot Swappable (ET 200SP System)
➜ TIA Portal Compatible
➜ Industrial-Grade Reliability
❝PRODUCT APPLICATIONS❞
➜ Furnace & Oven Control Systems
➜ Plastic Injection Machines
➜ Chemical Processing Plants
➜ Food & Beverage Industry
➜ HVAC Temperature Monitoring
➜ Water Treatment Plants
➜ Power & Energy Systems
➜ Packaging Machinery
➜ OEM Machinery
➜ Industrial Control Panels
➜ Process Automation Systems
➜ Factory Automation
❝PRODUCT❞
➜ 6ES7134-6JD00-0CA1 – ET 200SP AI 4xRTD/TC HF
➜ ET 200SP Interface Modules (IM 155-6 Series)
➜ ET 200SP Digital I/O Modules
➜ ET 200SP Analog Output Modules
➜ Siemens S7-1500 / SP Controllers
➜ PROFINET Networking Devices
➜ SCALANCE Industrial Switches
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7134-6JD00-0CA1 | ET 200SP, AI 4xRTD/TC 2-/3-/4-Wire HF |
