6ES7136-6DC00-0CA0
Description
6ES7136-6DC00-0CA0

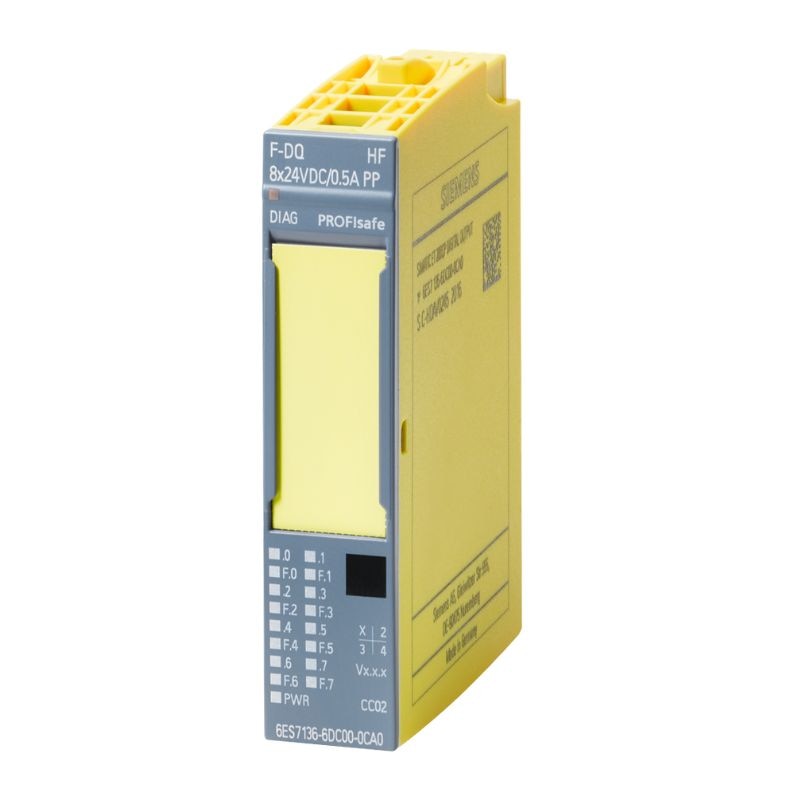

SIMATIC ET 200SP, F-DQ 8x24 V DC / 0.5 A PP HF Fail-Safe Digital Output Module
➜ BRAND: SIEMENS
❝PRODUCT DETAILS❞
➜ 6ES7136-6DC00-0CA0 is the SIMATIC ET 200SP F-DQ 8x24 V DC / 0.5 A PP HF fail-safe digital output module, designed for reliable control of safety-related actuators and loads in industrial automation and safety applications.
➜ The module provides 8 fail-safe digital outputs with 24 V DC operating voltage and up to 0.5 A output current per channel, making it suitable for controlling safety-related actuators, valves, contactors, and other field devices.
➜ The PP (push-pull) output design and High Feature (HF) functionality provide a flexible solution for safety-oriented digital output applications.
➜ With a compact 15 mm module width, the module provides 8 fail-safe output channels while helping optimize installation space within the SIMATIC ET 200SP station.
➜ The module supports safety applications up to Performance Level e (PL e) according to ISO 13849 and up to SIL 3 according to IEC 61508, when used as part of an appropriately designed safety system.
❝SPECIFICATIONS❞
➜ Part Number: 6ES7136-6DC00-0CA0
➜ Product Type: SIMATIC ET 200SP Fail-Safe Digital Output Module
➜ Module Type: F-DQ 8x24 V DC / 0.5 A PP HF
➜ Number of Digital Outputs: 8 × Fail-Safe DQ
➜ Output Voltage: 24 V DC
➜ Output Current: 0.5 A per Channel
➜ Output Type: PP (Push-Pull)
➜ Module Version: High Feature (HF)
➜ Module Width: 15 mm
➜ Safety Classification: Up to PL e according to ISO 13849
➜ Safety Integrity Level: Up to SIL 3 according to IEC 61508
➜ Product Series: SIMATIC ET 200SP
➜ Application: Fail-Safe Digital Output Control, Safety Actuators and Safety Automation
➜ Engineering System: TIA Portal / Safety Engineering
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCXRIPTION |
|---|---|
| 6ES7136-6DC00-0CA0 | ET 200SP, F-DQ 8x24VDC/0.5A PP HF |
