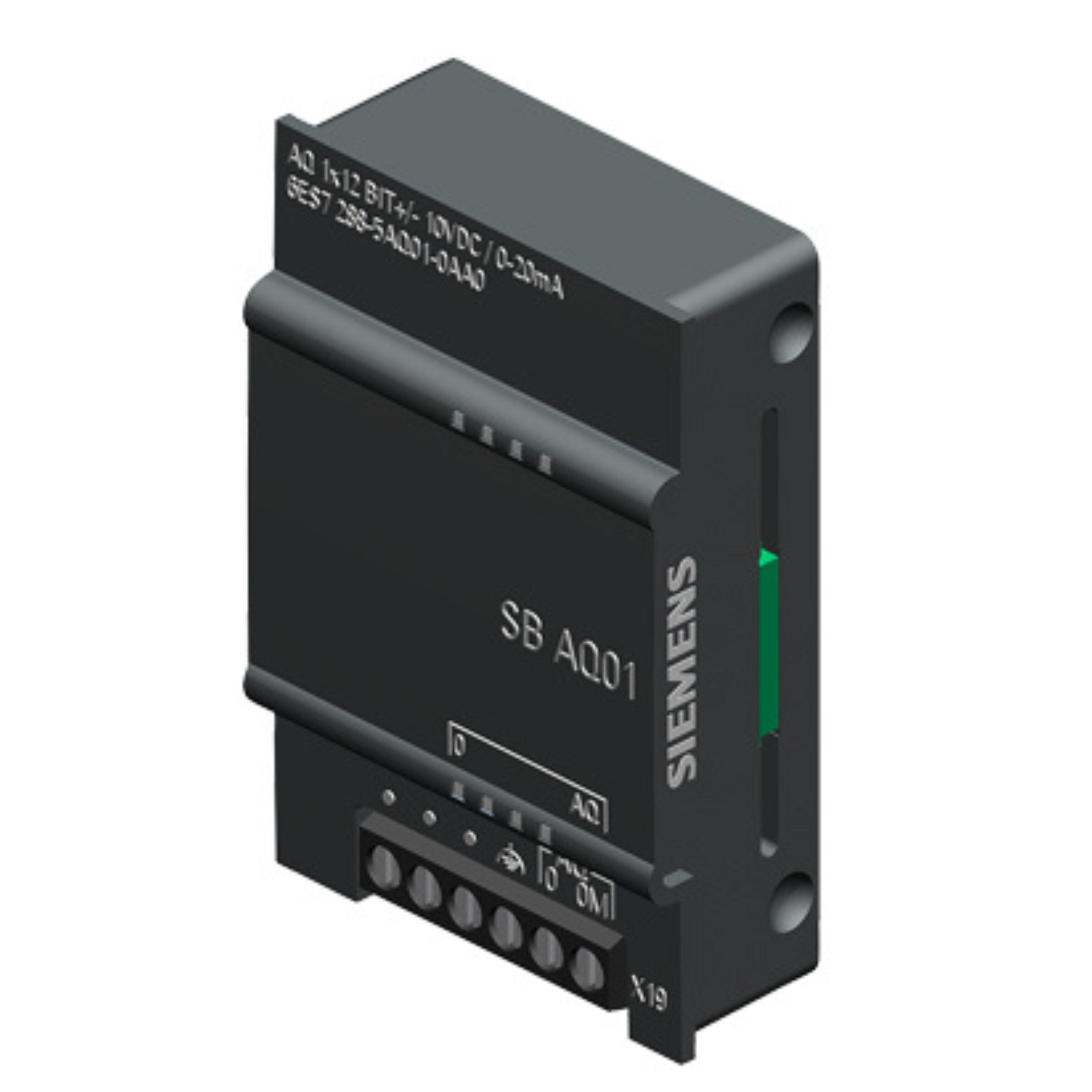

Signal Board SB AQ01, 1 AO
Description
SIMATIC S7-200 SMART SB AQ01 SIGNAL BOARD
❝AVAILABLE MODELS❞
Part Number: 6ES7288-5AQ01-0AA0
Type: Signal Board
Product Name: SB AQ01, 1 AO
❝PRODUCT DETAILS❞
➜ SB AQ01 is a compact analog signal board designed for SIMATIC S7-200 SMART PLC systems, providing a single analog output directly on the CPU for space-saving control applications.
➜ The board features 1 analog output channel, used for controlling devices such as VFD drives, proportional valves, actuators, and process control instruments.
➜ It is designed for direct CPU mounting, eliminating the need for additional large expansion modules in small control systems.
➜ The signal board ensures stable analog signal output, high precision, and reliable performance in industrial environments.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7288-5AQ01-0AA0
➜ Module Type: Signal Board
➜ Analog Outputs: 1 AO
➜ Compact CPU-Mounted Design
➜ High-Precision Signal Output
➜ Fast Response Control
➜ Easy Installation
➜ Industrial-Grade Reliability
➜ STEP 7 Micro/WIN SMART Compatibility
➜ Space-Saving Expansion Solution
❝PRODUCT APPLICATIONS❞
➜ Machine Automation Systems
➜ Industrial Control Panels
➜ HVAC Control Systems
➜ Pump Control Systems
➜ Water Treatment Plants
➜ Process Automation Systems
➜ OEM Machinery
➜ VFD Speed Control Applications
➜ Small Automation Systems
➜ Factory Automation
➜ Energy Management Systems
➜ Building Automation
❝PRODUCT❞
➜ 6ES7288-5AQ01-0AA0 – SB AQ01 Signal Board, 1 AO
➜ S7-200 SMART CPU Series (ST20 / ST30 / ST40 / ST60)
➜ Analog Output Modules
➜ Digital I/O Modules
➜ Communication Modules
➜ SMART LINE HMI Panels
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7288-5AQ01-0AA0 | Signal Board SB AQ01, 1 AO |
