Signal Board SB AE01, 1 AI
Description

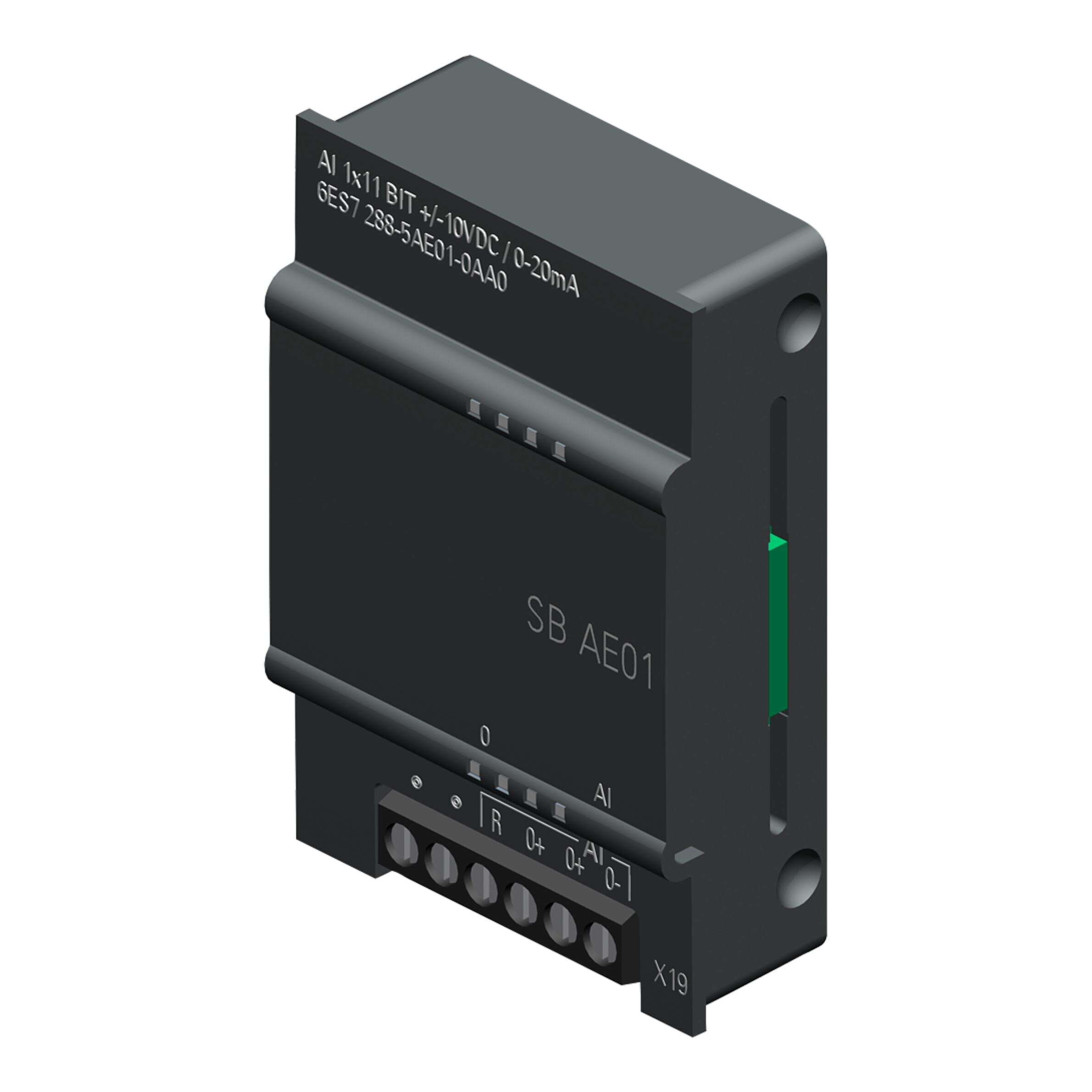

SIMATIC S7-200 SMART SB AE01 SIGNAL BOARD
❝AVAILABLE MODELS❞
Part Number: 6ES7288-5AE01-0AA0
Type: Signal Board
Product Name: SB AE01, 1 AI
❝PRODUCT DETAILS❞
➜ SB AE01 is a compact analog signal board designed for SIMATIC S7-200 SMART PLC systems, providing an additional analog input directly on the CPU.
➜ The board features 1 analog input channel, enabling measurement of process variables such as temperature, pressure, level, or other industrial sensor signals.
➜ It is designed for direct mounting on the CPU, allowing space-saving expansion without requiring a full-sized analog module.
➜ The signal board ensures stable signal acquisition, high accuracy, and reliable performance in industrial environments.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7288-5AE01-0AA0
➜ Module Type: Signal Board
➜ Analog Inputs: 1 AI
➜ Compact CPU-Mounted Design
➜ High-Accuracy Signal Acquisition
➜ Fast Response Measurement
➜ Easy Installation
➜ Industrial-Grade Reliability
➜ STEP 7 Micro/WIN SMART Compatibility
➜ Space-Saving Expansion Solution
❝PRODUCT APPLICATIONS❞
➜ Machine Automation Systems
➜ Industrial Control Panels
➜ HVAC Monitoring Systems
➜ Pump Control Systems
➜ Water Treatment Plants
➜ Process Automation Systems
➜ OEM Machinery
➜ Temperature & Pressure Monitoring
➜ Small Automation Systems
➜ Factory Automation
➜ Energy Management Systems
➜ Building Automation
❝PRODUCT❞
➜ 6ES7288-5AE01-0AA0 – SB AE01 Signal Board, 1 AI
➜ S7-200 SMART CPU Series (ST20 / ST30 / ST40 / ST60)
➜ Analog Expansion Modules
➜ Digital I/O Modules
➜ Communication Modules
➜ SMART LINE HMI Panels
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7288-5AE01-0AA0 | Signal Board SB AE01, 1 AI |
