Digital Output SM1222, 16 DO, Relay
Description

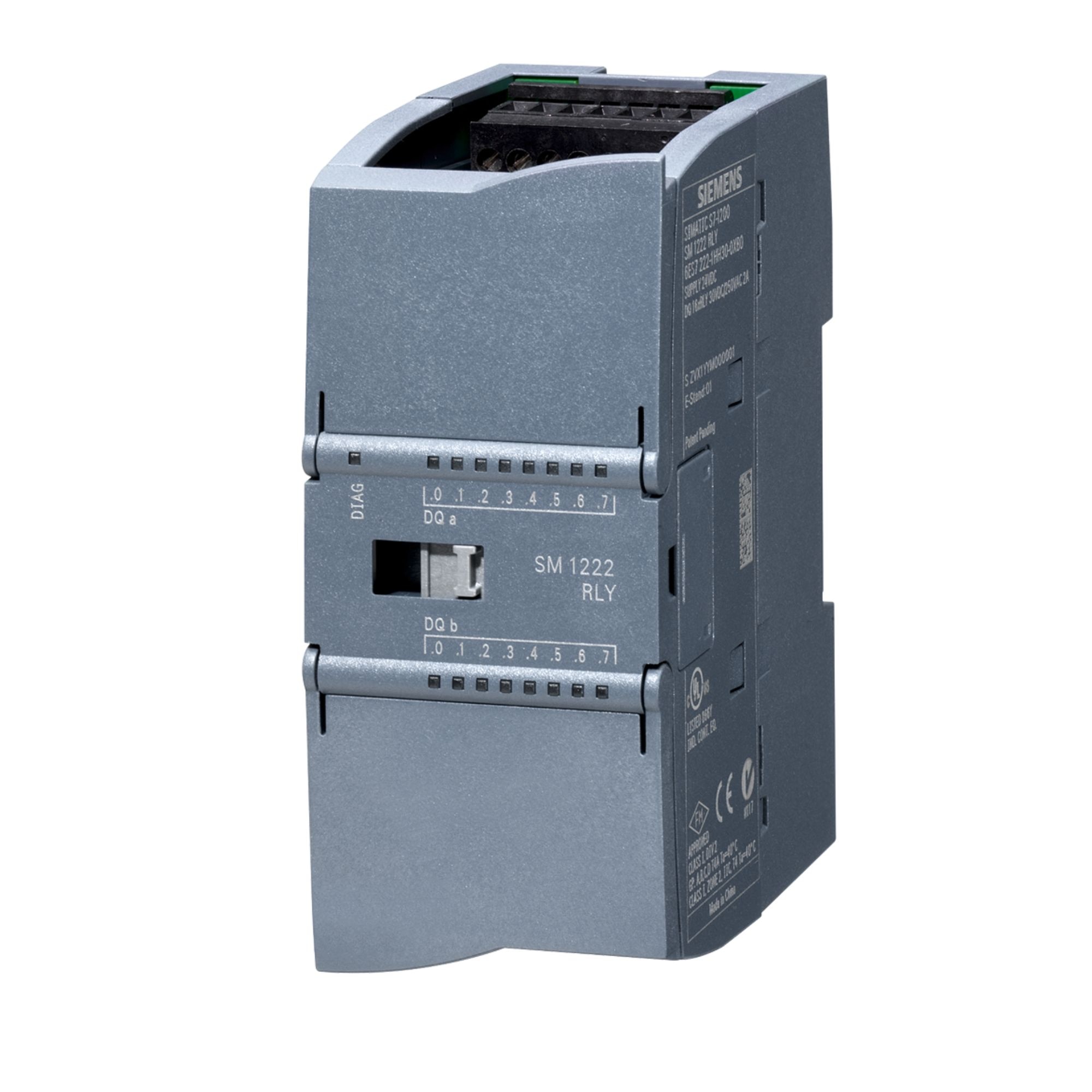

SIMATIC S7-1200 SM 1222 Digital Output Module
❝AVAILABLE MODELS❞
Part Number: 6ES7222-1HH32-0XB0
Type: Signal Module (Digital Output Expansion)
Brand: Siemens
❝PRODUCT DETAILS❞
➜ SIMATIC S7-1200 SM 1222 is a digital output expansion module designed to increase the number of output points in S7-1200 PLC systems.
➜ It is used to control external field devices such as contactors, solenoids, lamps, and actuators in industrial automation applications.
➜ The module provides relay outputs, allowing switching of both AC and DC loads with flexibility.
➜ It integrates seamlessly with S7-1200 CPUs and is configured using TIA Portal engineering software.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7222-1HH32-0XB0
➜ System: SIMATIC S7-1200
➜ Module Type: Digital Output Module
➜ Digital Outputs: 16 DO
➜ Output Type: Relay
➜ Compact DIN-rail mounting design
➜ High switching reliability
➜ Suitable for AC/DC load control
➜ TIA Portal compatible
➜ Industrial-grade construction
❝PRODUCT APPLICATIONS❞
➜ Machine automation systems
➜ Conveyor systems
➜ Packaging machinery
➜ Textile machines
➜ Pump and motor control
➜ HVAC systems
➜ OEM equipment control
➜ Material handling systems
➜ Industrial control panels
➜ Utility automation systems
❝PRODUCT❞
➜ 6ES7222-1HH32-0XB0 – SM 1222 Digital Output Module (Relay, 16 DO)
➜ S7-1200 CPU series (1211C / 1212C / 1214C / 1215C etc.)
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
❝Available for industrial automation expansion, OEM machine control systems, and relay-based output control applications.❞
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7222-1HH32-0XB0 | Digital Output SM1222, 16 DO, Relay |
