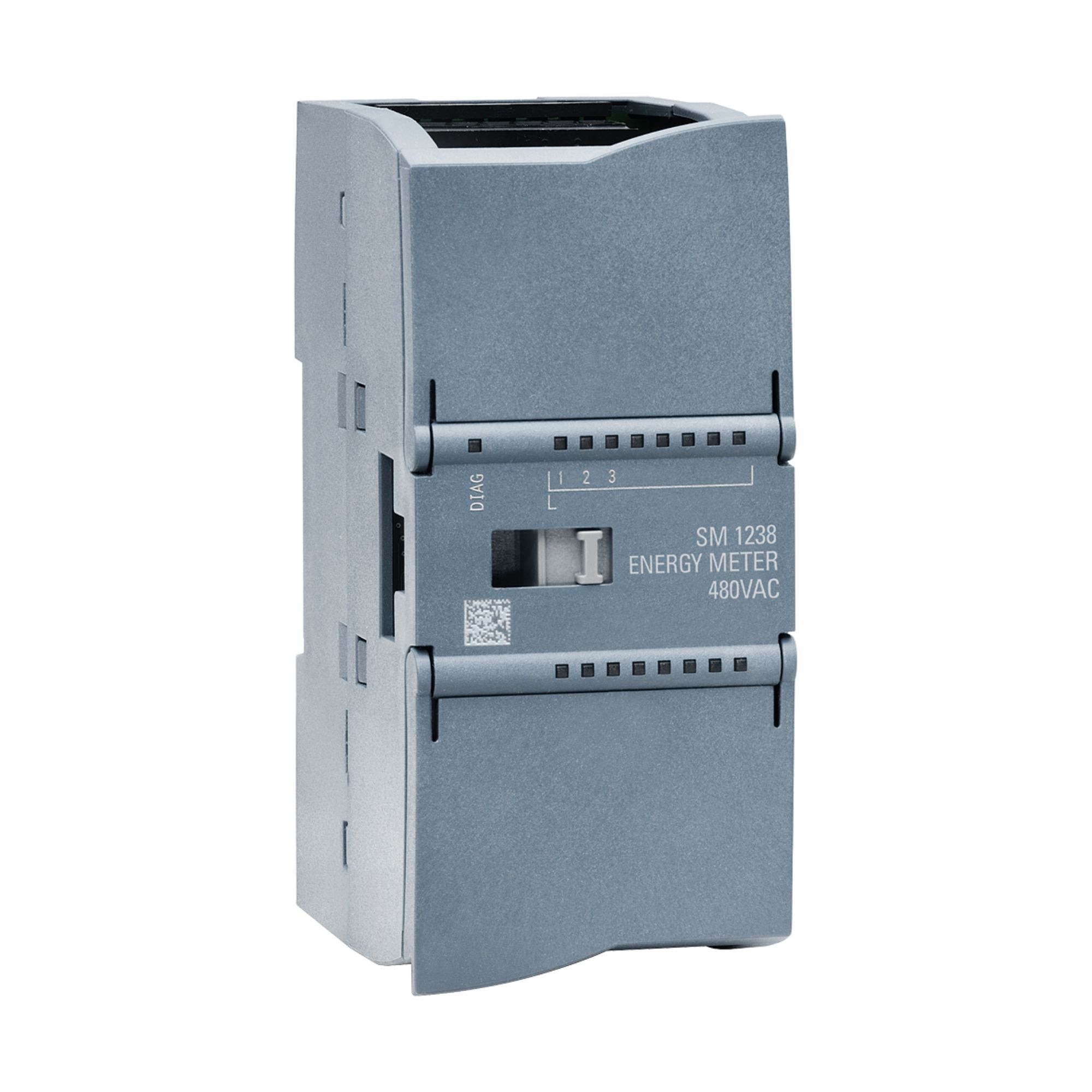

SM 1238 Energy Meter 480V AC
Description
SIMATIC S7-1200 SM 1238 Energy Meter Module
❝AVAILABLE MODELS❞
Part Number: 6ES7238-5XA32-0XB0
Type: Energy Meter Signal Module
Brand: Siemens
❝PRODUCT DETAILS❞
➜ SIMATIC S7-1200 SM 1238 Energy Meter is a dedicated measurement module for electrical energy monitoring in S7-1200 PLC systems.
➜ It is used to measure key electrical parameters such as voltage, current, power, and energy consumption in real time.
➜ The module is designed for three-phase systems up to 480V AC, enabling direct integration into industrial power monitoring applications.
➜ It integrates seamlessly with S7-1200 CPUs and is configured using TIA Portal engineering software.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7238-5XA32-0XB0
➜ System: SIMATIC S7-1200
➜ Module Type: Energy Meter Module
➜ Voltage Rating: Up to 480V AC
➜ Measurement: Voltage, Current, Power, Energy (kWh)
➜ Three-phase monitoring support
➜ High measurement accuracy
➜ Compact DIN-rail mounting design
➜ Industrial-grade reliability
➜ TIA Portal compatible
➜ Real-time data acquisition
❝PRODUCT APPLICATIONS❞
➜ Energy management systems
➜ Industrial power monitoring
➜ Factory energy optimization
➜ Machine-level energy tracking
➜ Building energy management systems
➜ Utility monitoring applications
➜ Process plant energy analysis
➜ Electrical distribution panels
➜ OEM energy reporting systems
➜ Cost reduction and efficiency systems
❝PRODUCT❞
➜ 6ES7238-5XA32-0XB0 – SM 1238 Energy Meter Module (480V AC)
➜ S7-1200 CPU series (1211C / 1212C / 1214C / 1215C etc.)
➜ Current transformers (CTs)
➜ Siemens HMI Basic Panels
➜ Power distribution systems and panels
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7238-5XA32-0XB0 | SM 1238 Energy Meter 480V AC |
