Digital I/O SM 1223, 16DI/16DO Transistor Output
Description

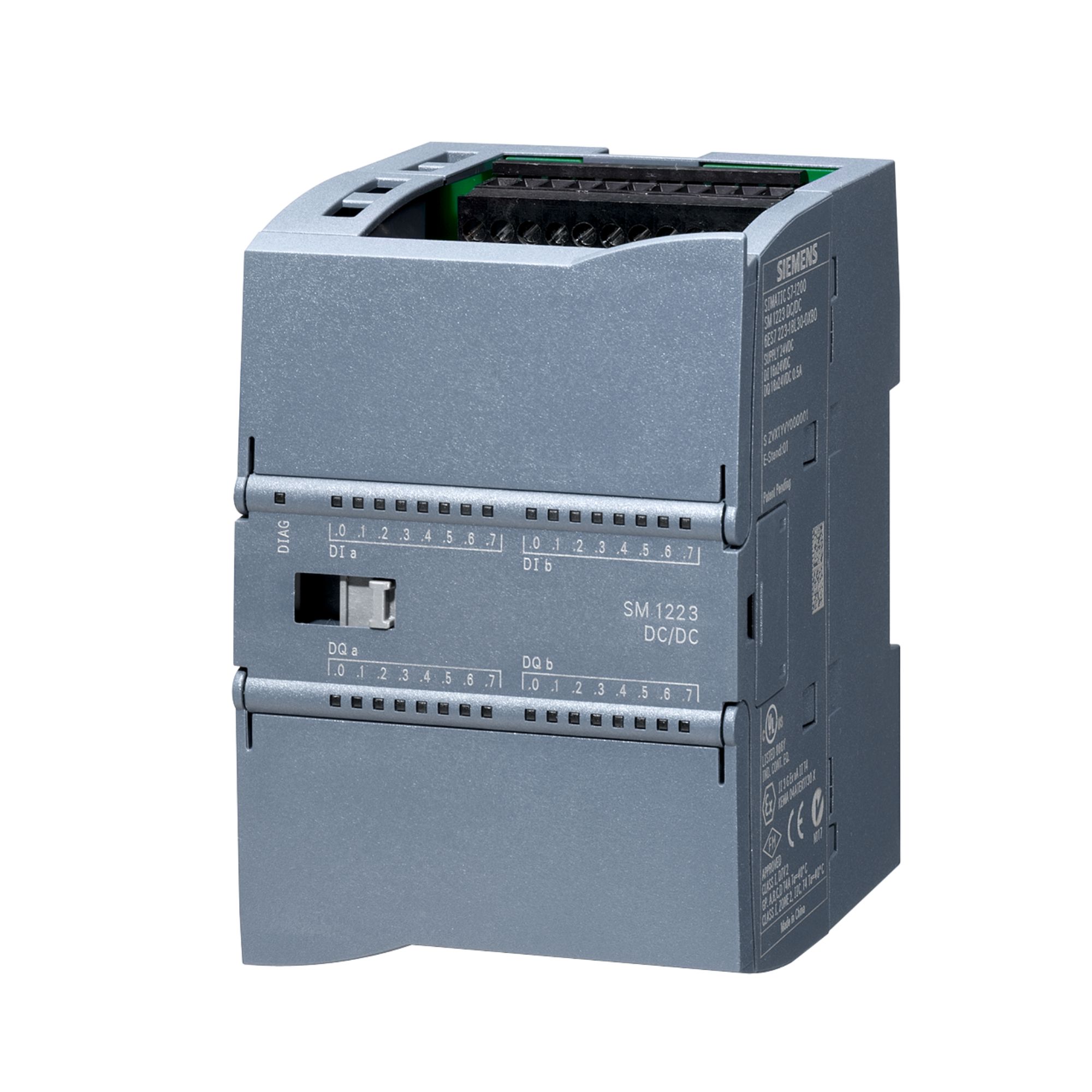

SIMATIC S7-1200 SM 1223 Digital I/O Module
❝AVAILABLE MODELS❞
Part Number: 6ES7223-1BL32-0XB0
Type: Signal Module (Digital I/O Expansion)
Brand: Siemens
❝PRODUCT DETAILS❞
➜ SIMATIC S7-1200 SM 1223 is a digital signal module designed to expand the input and output capacity of S7-1200 PLC systems.
➜ It provides additional high-density digital I/O for machine and industrial automation applications requiring more control points.
➜ The module supports transistor outputs suitable for fast switching operations and reliable control of field devices.
➜ It integrates seamlessly with S7-1200 CPUs and is configured using TIA Portal engineering software.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7223-1BL32-0XB0
➜ System: SIMATIC S7-1200
➜ Module Type: Digital I/O Expansion Module
➜ Digital Inputs: 16 DI
➜ Digital Outputs: 16 DO
➜ Output Type: Transistor (0.5 A)
➜ High-density compact design
➜ DIN-rail mounting
➜ Fast switching capability
➜ TIA Portal compatible
➜ Industrial-grade reliability
❝PRODUCT APPLICATIONS❞
➜ Machine automation systems
➜ Conveyor systems
➜ Packaging machinery
➜ Textile machines
➜ Pump and motor control
➜ HVAC systems
➜ OEM equipment control
➜ Material handling systems
➜ Industrial control panels
➜ Medium-scale automation systems
❝PRODUCT❞
➜ 6ES7223-1BL32-0XB0 – SM 1223 Digital I/O Module
➜ S7-1200 CPU series (1211C / 1212C / 1214C / 1215C etc.)
➜ Siemens HMI Basic Panels
➜ SINAMICS drive systems
➜ ET 200 distributed I/O systems
➜ Industrial sensors and actuators
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7223-1BL32-0XB0 | Digital I/O SM 1223, 16DI/16DO, transistor 0.5 A |
