SIEMENS SINAMICS V20 VFD by SIEMENS

6SL3210-5BE31-8UV0

In stock

Description

6SL3210-5BE31-8UV0

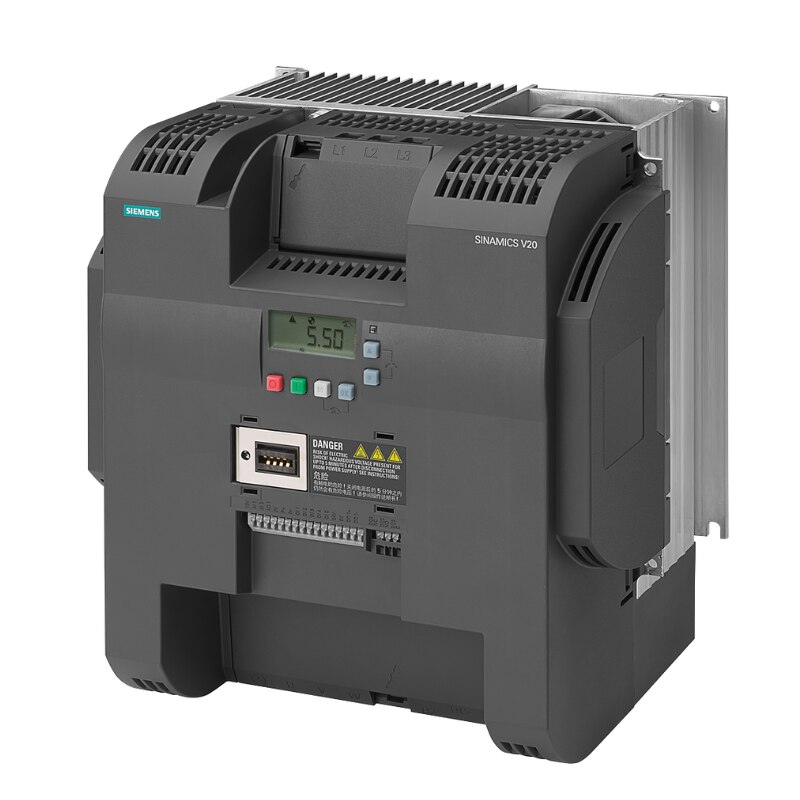

SINAMICS V20 — 18.5 kW, 3-Phase AC Drive

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 6SL3210-5BE31-8UV0 is a Siemens SINAMICS V20 frequency converter designed for economical and reliable speed control of three-phase AC motors in industrial automation applications.

➜ The drive operates with a 380–480 V, 3-phase AC input supply with an allowable voltage tolerance of -15% / +10% and an input frequency range of 47–63 Hz.

➜ It provides a rated motor power of 18.5 kW with 150% overload for 60 seconds, supporting applications with demanding temporary load requirements.

➜ The drive also supports a small-output overload rating of 22 kW with 110% overload for 60 seconds, providing additional flexibility for suitable applications.

➜ The drive features an unfiltered I/O configuration with 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output, providing flexible control and monitoring options.

➜ Integrated USS / MODBUS RTU fieldbus communication enables connection to compatible automation and control systems.

➜ The built-in BOP (Basic Operator Panel) supports convenient parameterization, commissioning, operation, and diagnostics.

❝SPECIFICATIONS❞

➜ Part Number: 6SL3210-5BE31-8UV0

➜ Product Type: SINAMICS V20 Frequency Converter

➜ Input Voltage: 380–480 V AC, -15% / +10%

➜ Input Phase: 3 AC

➜ Input Frequency: 47–63 Hz

➜ Rated Power: 18.5 kW

➜ Standard Overload Capacity: 150% for 60 seconds

➜ Small Output Overload Rating: 22 kW

➜ Small Output Overload Capacity: 110% for 60 seconds

➜ I/O Type: Unfiltered

➜ Digital Inputs: 4 DI

➜ Digital Outputs: 2 DO

➜ Analog Inputs: 2 AI

➜ Analog Output: 1 AQ

➜ Fieldbus: USS / MODBUS RTU

➜ Operator Panel: Built-in BOP

➜ Degree of Protection: IP20 / UL Open

➜ Size: E

➜ Dimensions (W × H × D): 244 × 265 × 209 mm

➜ Drive Series: SINAMICS V20

❝APPLICATIONS❞

➜ Motor Speed Control

➜ Conveyor Systems

➜ Pumps and Fans

➜ Material Handling Equipment

➜ Packaging Equipment

➜ Industrial Machinery

➜ Process Automation

➜ Machine Automation

➜ General-Purpose Drive Applications

❝CONTACT❞

➜ Supplier / OEM Stockist: Scalar Automation

➜ Location: Ahmedabad, Gujarat, India

Specifications

MODEL NUMBER6SL3210-5BE31-8UV0
DESCRIPTIONSINAMICS V20, 3AC 400V 18,5kW UNFILTRED
