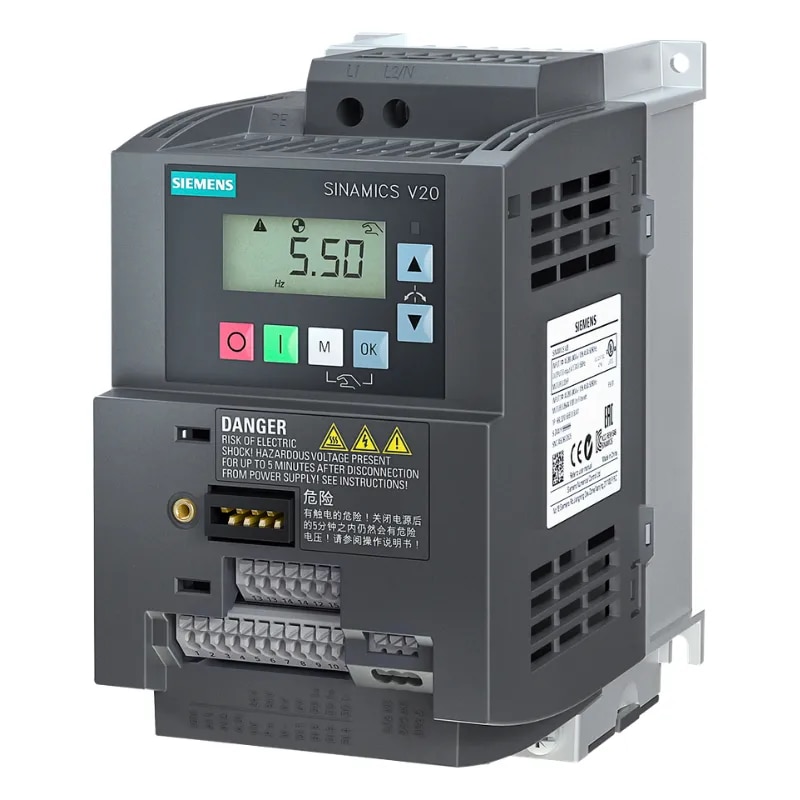

SINAMICS V20 — 1.5 kW, 1-Phase AC Drive with Integrated C1 Filter

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 6SL3210-5BB21-5BV1 is a Siemens SINAMICS V20 frequency converter designed for economical and reliable speed control of single-phase AC motors in industrial automation applications.

➜ The drive operates with a 200–240 V, 1-phase AC input supply with an allowable voltage tolerance of -10% / +10% and an input frequency range of 47–63 Hz.

➜ It provides a rated motor power of 1.5 kW and supports 150% overload for 60 seconds, making it suitable for applications with temporary higher load requirements.

➜ This version features an integrated EMC filter, Class C1, helping support electromagnetic compatibility requirements in suitable installations.

➜ The drive provides flexible control through 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output.

➜ Integrated USS / MODBUS RTU fieldbus communication enables connection to compatible automation and control systems.

➜ The built-in BOP (Basic Operator Panel) supports convenient parameterization, commissioning, operation, and diagnostics.

❝SPECIFICATIONS❞

➜ Part Number: 6SL3210-5BB21-5BV1

➜ Product Type: SINAMICS V20 Frequency Converter

➜ Input Voltage: 200–240 V AC, -10% / +10%

➜ Input Phase: 1 AC

➜ Input Frequency: 47–63 Hz

➜ Rated Power: 1.5 kW

➜ Overload Capacity: 150% for 60 seconds

➜ EMC Filter: Integrated Class C1

➜ Digital Inputs: 4 DI

➜ Digital Outputs: 2 DO

➜ Analog Inputs: 2 AI

➜ Analog Output: 1 AQ

➜ Fieldbus: USS / MODBUS RTU

➜ Operator Panel: Built-in BOP

➜ Degree of Protection: IP20 / UL Open

➜ Size: AC

➜ Dimensions (W × H × D): 90 × 160 × 147 mm

➜ Drive Series: SINAMICS V20
