6SL3210-5BE31-5UV0
Description
6SL3210-5BE31-5UV0

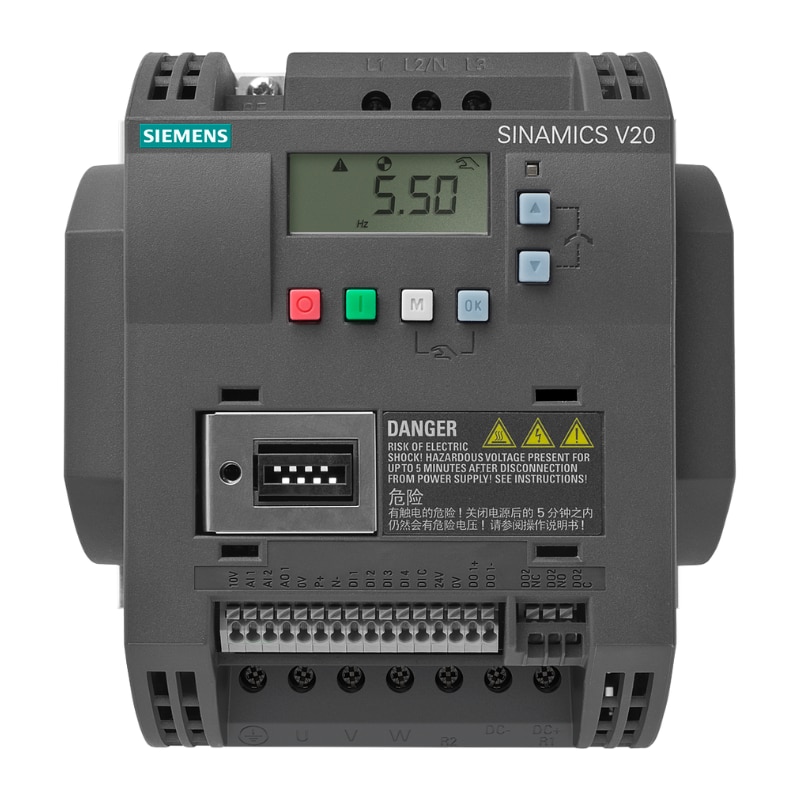

SINAMICS V20 — 15 kW, 3-Phase AC Drive
➜ BRAND: SIEMENS
❝PRODUCT DETAILS❞
➜ 6SL3210-5BE31-5UV0 is a Siemens SINAMICS V20 frequency converter designed for economical and reliable speed control of three-phase AC motors in industrial automation applications.
➜ The drive operates with a 380–480 V, 3-phase AC input supply with an allowable voltage tolerance of -15% / +10% and an input frequency range of 47–63 Hz.
➜ It provides a rated motor power of 15 kW and supports 150% overload for 60 seconds, making it suitable for applications requiring temporary higher load capability.
➜ The drive features an unfiltered I/O configuration with 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output, providing flexible control and monitoring options.
➜ Integrated USS / MODBUS RTU fieldbus communication enables connection to compatible automation and control systems.
➜ The built-in BOP (Basic Operator Panel) supports convenient parameterization, commissioning, operation, and diagnostics.
❝SPECIFICATIONS❞
➜ Part Number: 6SL3210-5BE31-5UV0
➜ Product Type: SINAMICS V20 Frequency Converter
➜ Input Voltage: 380–480 V AC, -15% / +10%
➜ Input Phase: 3 AC
➜ Input Frequency: 47–63 Hz
➜ Rated Power: 15 kW
➜ Overload Capacity: 150% for 60 seconds
➜ I/O Type: Unfiltered
➜ Digital Inputs: 4 DI
➜ Digital Outputs: 2 DO
➜ Analog Inputs: 2 AI
➜ Analog Output: 1 AQ
➜ Fieldbus: USS / MODBUS RTU
➜ Operator Panel: Built-in BOP
➜ Degree of Protection: IP20 / UL Open
➜ Size: D
➜ Dimensions (W × H × D): 240 × 207 × 173 mm
➜ Drive Series: SINAMICS V20
❝APPLICATIONS❞
➜ Motor Speed Control
➜ Conveyor Systems
➜ Pumps and Fans
➜ Material Handling Equipment
➜ Packaging Equipment
➜ Industrial Machinery
➜ Process Automation
➜ Machine Automation
➜ General-Purpose Drive Applications
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | 6SL3210-5BE31-5UV0 |
|---|---|
| DESCRIPTION | SINAMICS V20, 3AC 400V 15kW UNFILTERED |
