6SL3210-5BE31-5CV0

6SL3210-5BE31-5CV0

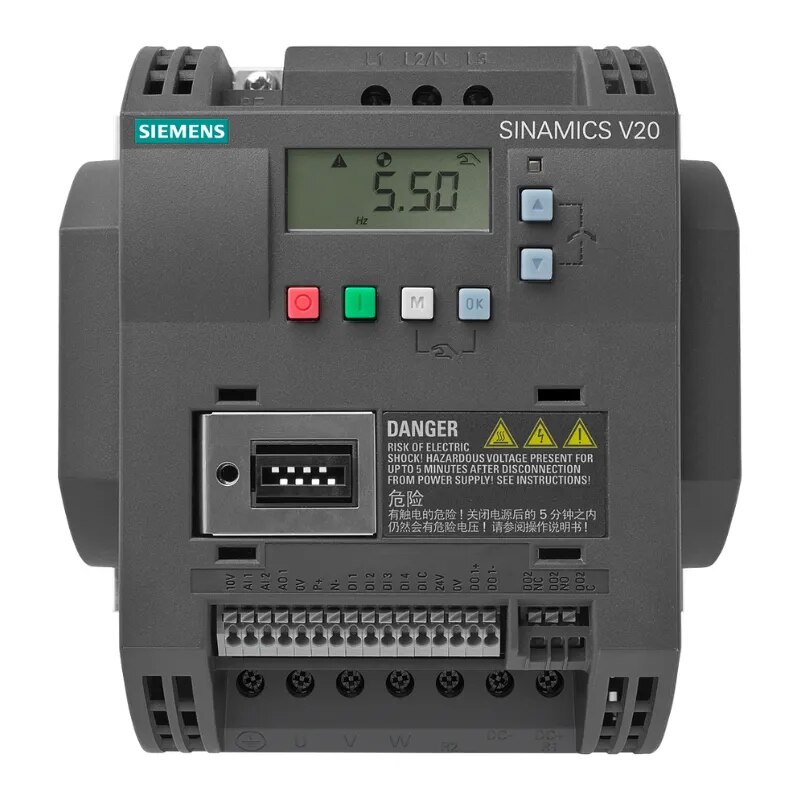

SINAMICS V20 — 15 kW, 3-Phase AC Drive with Integrated C3 Filter

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 6SL3210-5BE31-5CV0 is a Siemens SINAMICS V20 frequency converter designed for economical and reliable speed control of three-phase AC motors in industrial automation applications.

➜ The drive operates with a 380–480 V, 3-phase AC input supply with an allowable voltage tolerance of -15% / +10% and an input frequency range of 47–63 Hz.

➜ It provides a rated motor power of 15 kW and supports 150% overload for 60 seconds, making it suitable for applications with demanding temporary load requirements.

➜ This version features an integrated EMC filter, Class C3, helping support electromagnetic compatibility requirements in suitable industrial installations.

➜ The drive provides flexible control through 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output.

➜ Integrated USS / MODBUS RTU fieldbus communication enables connection to compatible automation and control systems.

➜ The built-in BOP (Basic Operator Panel) supports convenient parameterization, commissioning, operation, and diagnostics.

❝SPECIFICATIONS❞

➜ Part Number: 6SL3210-5BE31-5CV0

➜ Product Type: SINAMICS V20 Frequency Converter

➜ Input Voltage: 380–480 V AC, -15% / +10%

➜ Input Phase: 3 AC

➜ Input Frequency: 47–63 Hz

➜ Rated Power: 15 kW

➜ Overload Capacity: 150% for 60 seconds

➜ EMC Filter: Integrated Class C3

➜ Digital Inputs: 4 DI

➜ Digital Outputs: 2 DO

➜ Analog Inputs: 2 AI

➜ Analog Output: 1 AQ

➜ Fieldbus: USS / MODBUS RTU

➜ Operator Panel: Built-in BOP

➜ Degree of Protection: IP20 / UL Open

➜ Size: D

➜ Dimensions (W × H × D): 240 × 207 × 173 mm

➜ Drive Series: SINAMICS V20
