6SL3210-1PE34-8CL0
Description
6SL3210-1PE34-8CL0

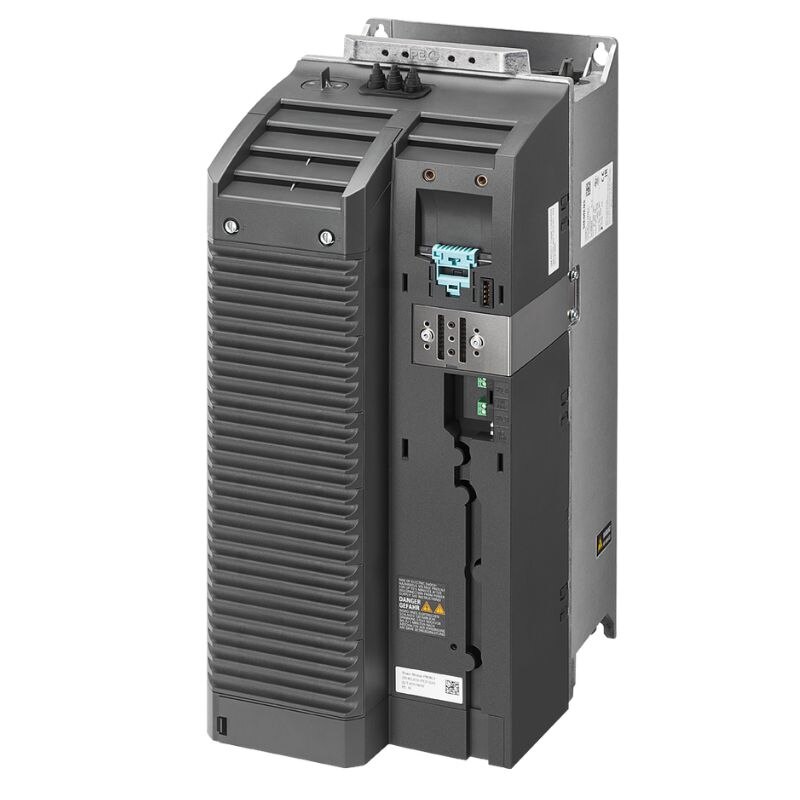

SINAMICS G120/S120 Power Module PM240-2 — 200 kW High Overload / 250 kW Low Overload
➜ BRAND: SIEMENS
❝PRODUCT DETAILS❞
➜ 6SL3210-1PE34-8CL0 is a Siemens SINAMICS G120/S120 Power Module PM240-2, designed for high-power industrial motor control and demanding drive applications.
➜ The module operates with a 380–480 V, 3-phase AC input supply with a permissible voltage tolerance of +10% / -10% and an input frequency range of 47–63 Hz.
➜ It features an integrated C3 filter and an integrated braking chopper, providing electromagnetic compatibility and dynamic braking capability for industrial drive systems.
➜ Under high-overload (HO) duty, the module supports 200 kW with 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, at an ambient temperature range of -20 to +50 °C.
➜ Under low-overload (LO) duty, it supports 250 kW with 150% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, at an ambient temperature range of -20 to +40 °C.
➜ The module is supplied without a Control Unit and operating panel, allowing integration with a compatible SINAMICS control configuration.
➜ It is approved for use with CU firmware version V4.7 SP9 and V5.1, according to the supplied product information.
❝SPECIFICATIONS❞
➜ Part Number: 6SL3210-1PE34-8CL0
➜ Product Type: SINAMICS G120/S120 Power Module PM240-2
➜ Input Voltage: 380–480 V AC, +10% / -10%
➜ Input Phase: 3 AC
➜ Input Frequency: 47–63 Hz
➜ High Overload Power: 200 kW
➜ High Overload: 200% for 3 s / 150% for 57 s / 100% for 240 s
➜ High Overload Ambient Temperature: -20 to +50 °C
➜ Low Overload Power: 250 kW
➜ Low Overload: 150% for 3 s / 110% for 57 s / 100% for 240 s
➜ Low Overload Ambient Temperature: -20 to +40 °C
➜ Filter: Integrated C3 Filter
➜ Braking Chopper: Integrated
➜ Frame Size: FSG
➜ Dimensions (H × W × D): 1000 × 305 × 357 mm
➜ Degree of Protection: IP20
➜ Control Unit: Not included
➜ Operating Panel: Not included
➜ Overload Duty: HO / LO
➜ Compatible Firmware: CU firmware V4.7 SP9 and V5.1
➜ Drive Series: SINAMICS G120 / S120
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | 6SL3210-1PE34-8CL0 |
|---|---|
| DESCRIPTION | SINAMICS PM240-2 FSG-C3-400V-250kW |
