SIEMENS SINAMICS G120 VFD by SIEMENS

6SL3246-0BA22-1BA0

In stock

Description

6SL3246-0BA22-1BA0

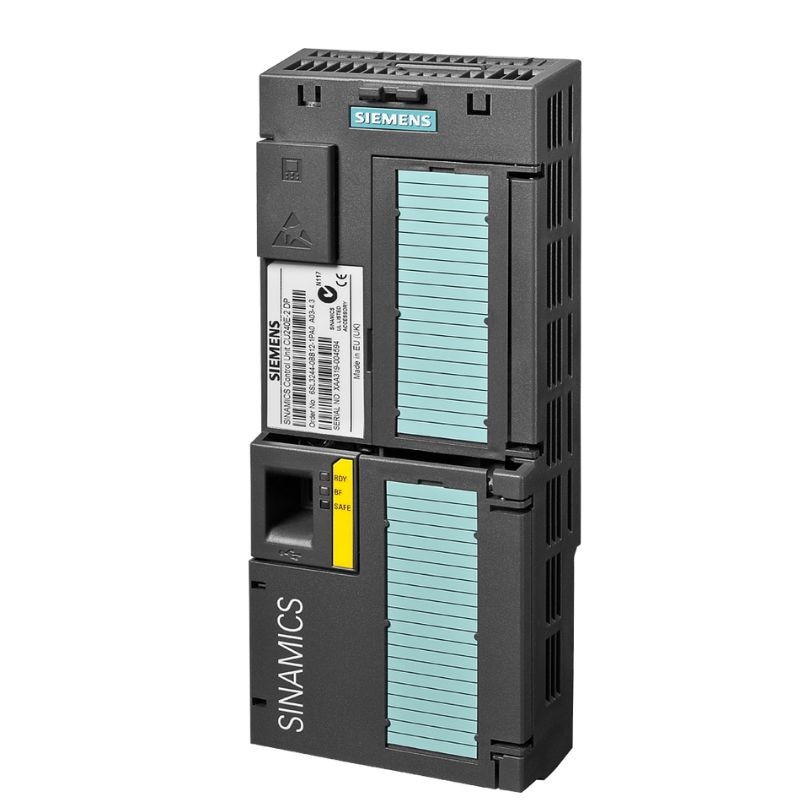

SINAMICS G120 Control Unit CU250S-2 — Vector Control, EPOS & Safety Integrated

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 6SL3246-0BA22-1BA0 is a Siemens SINAMICS G120 Control Unit CU250S-2, designed for advanced motor control, positioning, encoder feedback, and safety applications in industrial automation systems.

➜ The Control Unit features an integrated RS485 interface supporting USS and Modbus RTU, enabling communication with PLCs, HMIs, and other industrial automation devices.

➜ It supports vector control and Basic Positioner (EPOS) functionality. Extended functions can be enabled through the appropriate license.

➜ The unit provides flexible configurable I/O, including digital inputs and outputs, fail-safe digital inputs/outputs, analog inputs, and analog outputs for machine control and automation applications.

➜ Integrated Safety Integrated functions include STO (Safe Torque Off), SBC (Safe Brake Control), and SS1 (Safe Stop 1). Additional safety functions are available through the “Extended Safety” license.

➜ The Control Unit supports multiple encoder technologies through its encoder interfaces, including D-CLiQ, HTL/TTL/SSI, resolver, and HTL via terminal.

➜ It includes USB and SD/MMC interfaces for commissioning, parameterization, configuration, and data management.

❝SPECIFICATIONS❞

➜ Part Number: 6SL3246-0BA22-1BA0

➜ Product Type: SINAMICS G120 Control Unit

➜ Control Unit: CU250S-2

➜ Communication Interface: RS485

➜ Communication Protocols: USS / Modbus RTU

➜ Control Mode: Vector Control

➜ Positioning Function: Basic Positioner EPOS

➜ Extended Functions: Available via License

➜ Configurable Digital I/O: 4 configurable DI/DO

➜ Digital Inputs: 6 DI, including 3 F-DI

➜ Additional I/O Configuration: 5 DI / 3 DO, including 1 F-DO

➜ Analog Inputs: 2 AI

➜ Analog Outputs: 2 AO

➜ Safety Integrated: STO / SBC / SS1

➜ Additional Safety Functions: Available via “EXTENDED SAFETY” license

➜ Encoder Interface: D-CLiQ

➜ Supported Encoder Signals: HTL / TTL / SSI / Resolver / HTL via terminal

➜ USB Interface: Yes

➜ SD/MMC Interface: Yes

➜ Degree of Protection: IP20

➜ Drive Series: SINAMICS G120

❝CONTACT❞

➜ Supplier / OEM Stockist: Scalar Automation

➜ Location: Ahmedabad, Gujarat, India

Specifications

MODEL NUMBER6SL3246-0BA22-1BA0
DESCRIPTIONSINAMICS CU250S-2
