SIEMENS SINAMICS G120 VFD by SIEMENS

6SL3210-1PE16-1UL1

In stock

Description

6SL3210-1PE16-1UL1

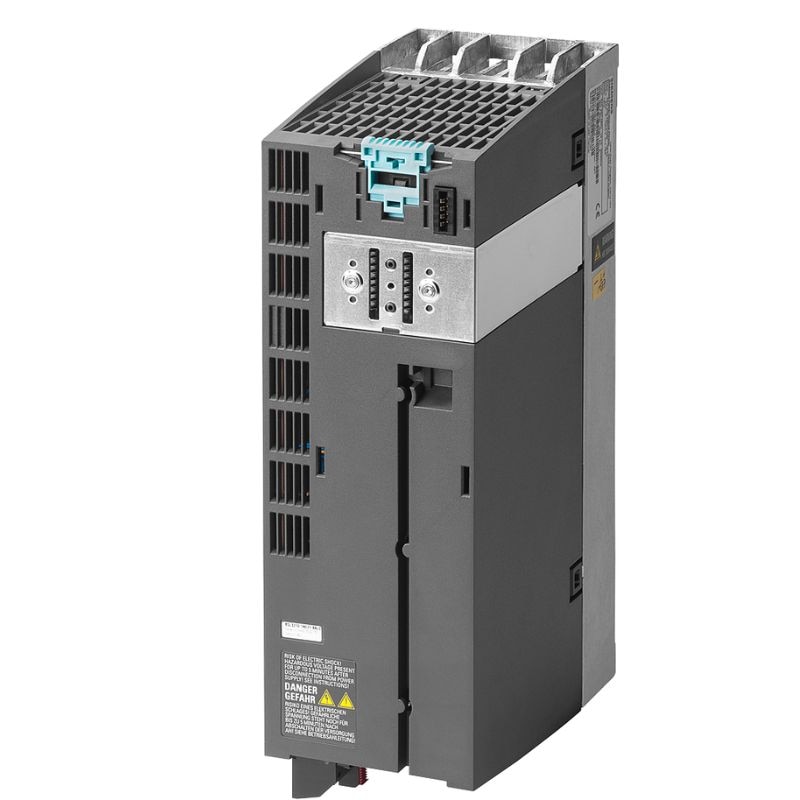

SINAMICS Power Module PM240-2 — 1.5 kW High Overload / 2.2 kW Low Overload

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 6SL3210-1PE16-1UL1 is a Siemens SINAMICS Power Module PM240-2, designed for reliable power conversion and motor control in industrial drive applications.

➜ The module operates with a 380–480 V, 3-phase AC input supply with a permissible voltage tolerance of +10% / -10% and an input frequency range of 47–63 Hz.

➜ It features an integrated braking chopper and is supplied in an unfiltered configuration, making it suitable for applications requiring dynamic braking capability.

➜ Under high-overload duty, the module supports 1.5 kW with 200% overload for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds, at an ambient temperature range of -10 to +50 °C.

➜ Under low-overload duty, it supports 2.2 kW with 150% overload for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, at an ambient temperature range of -10 to +40 °C.

➜ The module is supplied without a Control Unit and operating unit, allowing integration with a compatible SINAMICS control configuration.

➜ It is released for use with Control Unit firmware version V4.6 or later, according to the supplied product information.

❝SPECIFICATIONS❞

➜ Part Number: 6SL3210-1PE16-1UL1

➜ Product Type: SINAMICS Power Module PM240-2

➜ Input Voltage: 380–480 V AC, +10% / -10%

➜ Input Phase: 3 AC

➜ Input Frequency: 47–63 Hz

➜ High Overload Power: 1.5 kW

➜ High Overload: 200% for 3 s / 150% for 57 s / 100% for 240 s

➜ High Overload Ambient Temperature: -10 to +50 °C

➜ Low Overload Power: 2.2 kW

➜ Low Overload: 150% for 3 s / 110% for 57 s / 100% for 240 s

➜ Low Overload Ambient Temperature: -10 to +40 °C

➜ Filter: Unfiltered

➜ Braking Chopper: Integrated

➜ Frame Size: FSA

➜ Dimensions (H × W × D): 196 × 73 × 165 mm

➜ Degree of Protection: IP20

➜ Control Unit: Not included

➜ Operating Unit: Not included

➜ Compatible Firmware: CU firmware version V4.6 and later

➜ Drive Series: SINAMICS

❝CONTACT❞

➜ Supplier / OEM Stockist: Scalar Automation

➜ Location: Ahmedabad, Gujarat, India

Specifications

MODEL NUMBER 6SL3210-1PE16-1UL1
DESCRIPTIONSINAMICS PM240-2 IP20-FSA-U-400V-2,2KW
