6ES7322-8BH10-0AB0

6ES7322-8BH10-0AB0

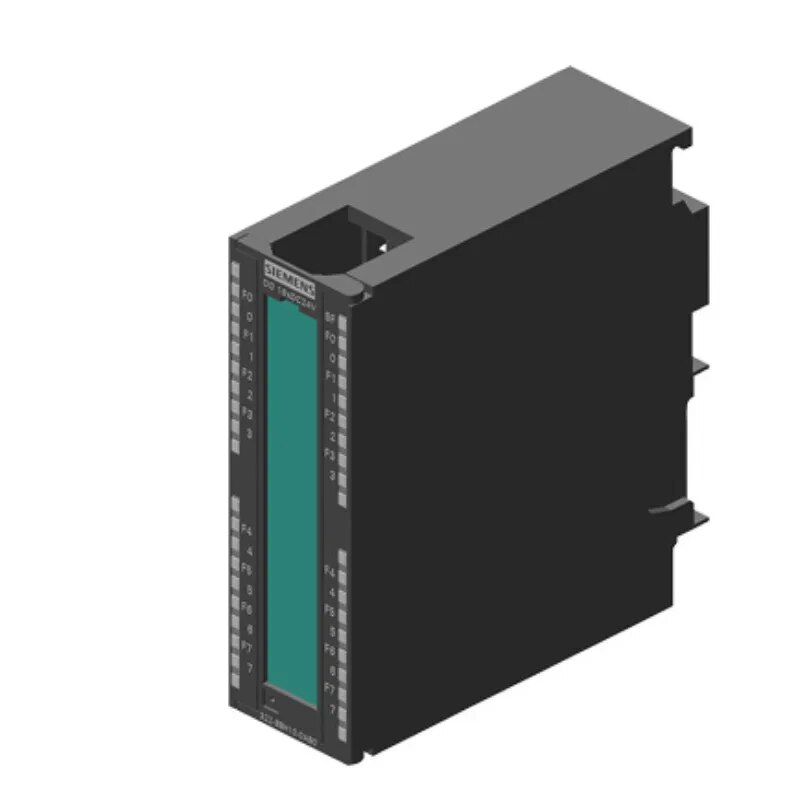

SIMATIC S7/PCS 7 SM 322 Digital Output Module — Spare Part

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 6ES7322-8BH10-0AB0 is a SIMATIC S7/PCS 7 SM 322 digital output module, supplied as a spare part for compatible automation systems.

➜ The module provides 16 digital outputs (DO) with a 24 V DC / 0.5 A output rating for controlling compatible actuators and industrial field devices.

➜ It is diagnostics-capable, supporting monitoring of module and output conditions for easier fault detection and maintenance.

➜ The module supports wire-break detection with both 0 and 1 signal, providing enhanced monitoring of connected output circuits.

➜ A 1 × 40-pole connection provides the wiring interface for integration into the distributed I/O system.

➜ Connection to an IM 153-X HF interface module is required for the specified distributed I/O configuration.

❝SPECIFICATIONS❞

➜ Part Number: 6ES7322-8BH10-0AB0

➜ Product Type: SIMATIC S7/PCS 7 Digital Output Module

➜ Module Type: SM 322

➜ Product Status: Spare Part

➜ Digital Outputs: 16 DO

➜ Output Voltage: 24 V DC

➜ Output Current: 0.5 A

➜ Diagnostics: Diagnostics-capable

➜ Wire Break Detection: Supported with 0 and 1 signal

➜ Required Interface Module: IM 153-X HF

➜ Connection: 1 × 40-pole

➜ Product Series: SIMATIC S7 / PCS 7

➜ Application: Digital Actuator Control, Distributed I/O, Process Automation, Output Diagnostics and Industrial Control
