1FL6042-2AF21-1MB1

1FL6042-2AF21-1MB1

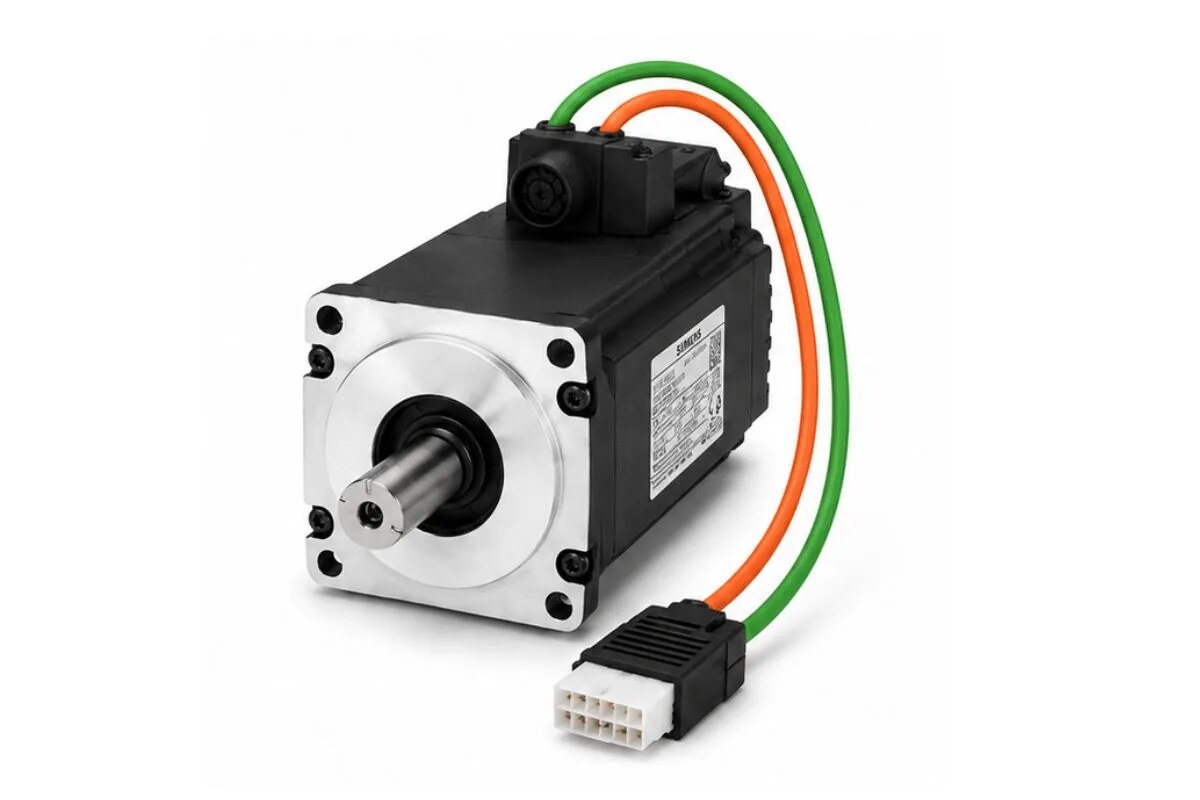

SIMOTICS S-1FL6 Servo Motor — 0.75 kW, 3000 rpm, Absolute Encoder with Holding Brake

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 1FL6042-2AF21-1MB1 is a Siemens SIMOTICS S-1FL6 servo motor designed for precise and reliable motion-control applications and compatible with the SINAMICS V90 servo drive.

➜ The motor operates with a 230 V, 3-phase AC supply and provides 0.75 kW rated power at a rated speed of 3000 rpm, making it suitable for industrial automation and precision positioning applications.

➜ It provides a standstill torque (M0) of 2.39 Nm and rated torque (MN) of 2.39 Nm, supporting reliable torque performance during servo operation.

➜ The motor is equipped with an absolute single-turn 21-bit encoder, providing accurate position feedback for precise motion and positioning control.

➜ It features a 40 mm shaft height and feather key for secure mechanical coupling with compatible machine components.

➜ This version includes a holding brake, helping maintain the motor shaft position when the motor is stopped or when holding torque is required.

➜ The motor has an IP65 degree of protection with fitting oil seal, providing protection suitable for industrial machine environments within the specified conditions.

❝SPECIFICATIONS❞

➜ Part Number: 1FL6042-2AF21-1MB1

➜ Product Type: SIMOTICS S-1FL6 Servo Motor

➜ Motor Series: SIMOTICS S-1FL6

➜ Voltage Supply: 230 V, 3 AC

➜ Rated Power (Pn): 0.75 kW

➜ Rated Speed (Nn): 3000 rpm

➜ Standstill Torque (M0): 2.39 Nm

➜ Rated Torque (MN): 2.39 Nm

➜ Shaft Height: 40 mm

➜ Encoder Type: Absolute Encoder, Single-Turn

➜ Encoder Resolution: 21-bit

➜ Shaft Design: With Feather Key

➜ Tolerance: N

➜ Holding Brake: With Holding Brake

➜ Degree of Protection: IP65 with Fitting Oil Seal

➜ Compatible Drive: SINAMICS V90

❝APPLICATIONS❞

➜ Precision Motion Control

➜ Servo Positioning Systems

➜ Packaging Machinery

➜ Material Handling Equipment

➜ Conveyor and Indexing Systems

➜ Machine Automation

➜ Industrial Positioning Applications

➜ SINAMICS V90 Servo Systems

➜ Siemens PLC-Based Motion Control Systems
