SIMATIC S7-300 CPU 314C-2 DP, 24DI/16DO/5AI/2AO, 192 KB
Description

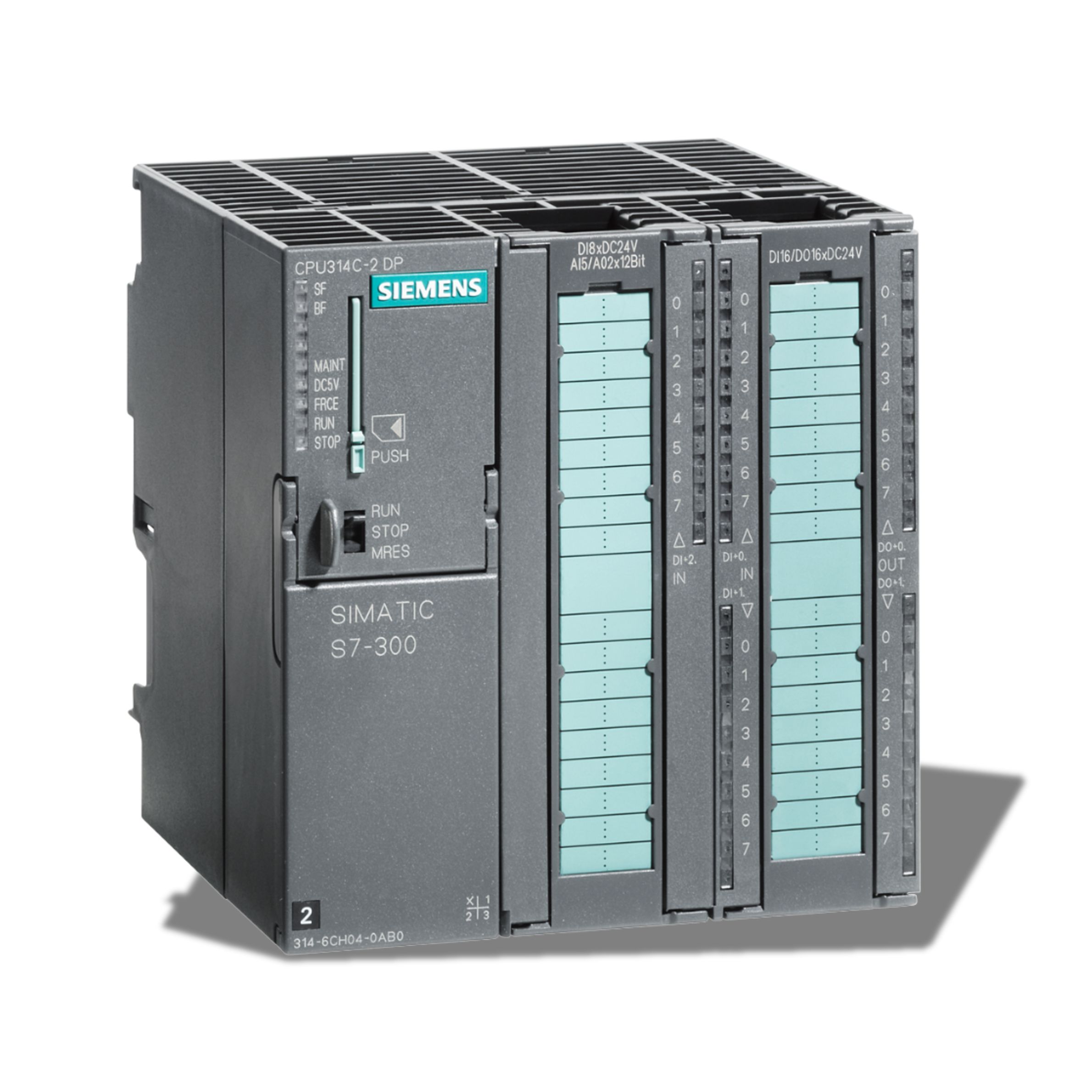

SIMATIC S7-300 CPU 314C-2 DP
❝AVAILABLE MODELS❞
Part Number: 6ES7314-6CH04-0AB0
Type: Compact PLC CPU (SIMATIC S7-300 Series)
Product Name: CPU 314C-2 DP
❝PRODUCT DETAILS❞
➜ CPU 314C-2 DP is a compact controller from the SIMATIC S7-300 family designed for small to medium industrial automation applications.
➜ It integrates digital and analog I/O along with a built-in PROFIBUS DP interface, enabling direct communication with distributed I/O systems, drives, and field devices.
➜ The CPU is suitable for machine automation applications requiring compact design, onboard I/O, and network connectivity in a single unit.
➜ It supports expansion with additional S7-300 I/O modules for flexible system design.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7314-6CH04-0AB0
➜ CPU Type: S7-300 CPU 314C-2 DP
➜ Program Memory: 192 KB
➜ Digital Inputs: 24 DI (Onboard)
➜ Digital Outputs: 16 DO (Onboard)
➜ Analog Inputs: 5 AI (Onboard)
➜ Analog Outputs: 2 AO (Onboard)
➜ Integrated Communication: PROFIBUS DP
➜ Compact All-in-One Controller
➜ Modular Expansion Support
➜ STEP 7 Compatible
➜ Industrial-Grade Performance
➜ Reliable Automation Control
❝PRODUCT APPLICATIONS❞
➜ Machine Automation Systems
➜ Packaging Machinery
➜ Conveyor Systems
➜ Textile Machines
➜ Pump & Compressor Systems
➜ HVAC Automation
➜ OEM Machinery
➜ Material Handling Systems
➜ Process Automation Systems
➜ Industrial Control Panels
➜ Factory Automation
➜ Utility Automation Systems
❝PRODUCT❞
➜ 6ES7314-6CH04-0AB0 – CPU 314C-2 DP
➜ S7-300 Expansion Modules (DI/DO/AI/AO)
➜ PROFIBUS DP Devices
➜ Siemens HMI Panels
➜ SINAMICS Drives
➜ SCALANCE Industrial Networking
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7314-6CH04-0AB0 | CPU314C-2DP, 24DI/16DO/5AI/2AO, 192 KB |
