SIMATIC S7-1200 G2 Digital Modules
Description

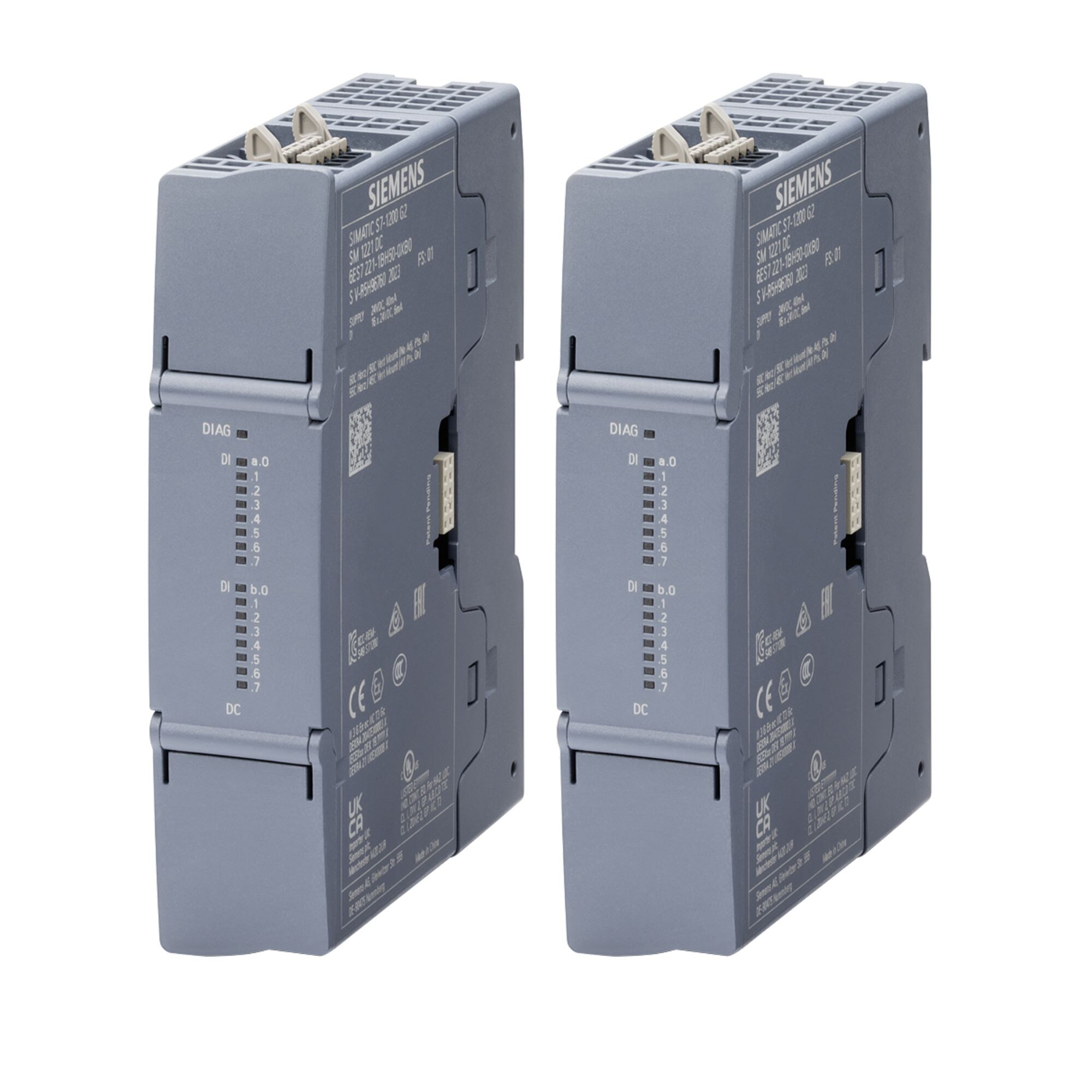

# SIMATIC S7-1200 G2 Digital Modules
❝AVAILABLE MODELS❞
Product Series: SIMATIC S7-1200 G2
Type: Digital Signal Modules (DI / DO / DI-DO Hybrid)
Brand: Siemens
❝PRODUCT DETAILS❞
➜ SIMATIC S7-1200 G2 Digital Modules are expansion modules designed to extend the digital input and output capacity of the S7-1200 G2 PLC system.
➜ These modules are used to interface real-world ON/OFF signals such as sensors, switches, relays, contactors, solenoids, and indicator devices.
➜ They provide flexible system scaling for machine automation and industrial control applications.
➜ The modules are fully integrated with TIA Portal for configuration, diagnostics, and commissioning.
❝KEY FEATURES❞
➜ High-density digital input and output channels
➜ 24V DC industrial signal compatibility
➜ Fast signal processing with low response time
➜ Relay and transistor output options available
➜ DI/DO hybrid modules for compact wiring design
➜ Advanced diagnostics and channel-level status monitoring
➜ Easy plug-in modular expansion with CPU
➜ Robust industrial EMC protection
➜ Seamless integration with PROFINET systems
➜ Compact DIN-rail mounting design
❝PRODUCT APPLICATIONS❞
➜ Machine automation systems
➜ Packaging machinery
➜ Conveyor systems
➜ Textile machines
➜ Pump and motor control systems
➜ HVAC automation
➜ OEM machinery
➜ Material handling systems
➜ Production line automation
➜ Industrial control panels
➜ Factory automation systems
➜ Smart manufacturing solutions
❝PRODUCT❞
6ES7221-1BH50-0XB0 SM 1221 Digital Input , 16DI
6ES7222-5BH50-0XB0 SM 1222 Digital Output, 16DQ
6ES7222-5HH50-0XB0 SM 1222 Digital Output, 16RLY
6ES7223-5BH50-0XB0 SM 1223 Digital I/O, 8DI/8DO
6ES7223-5PH50-0XB SM 1223 Digital I/O, 8DI/8RLY
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7223-5PH50-0XB0 | SM 1223 Digital I/O, 8DI/8RLY |
| 6ES7222-5BH50-0XB0 | SM 1222 Digital Output, 16DQ |
| 6ES7221-1BH50-0XB0 | SM 1221 Digital Input , 16DI |
| 6ES7223-5BH50-0XB0 | SM 1223 Digital I/O, 8DI/8DO |
| 6ES7222-5HH50-0XB0 | SM 1222 Digital Output, 16RLY |
