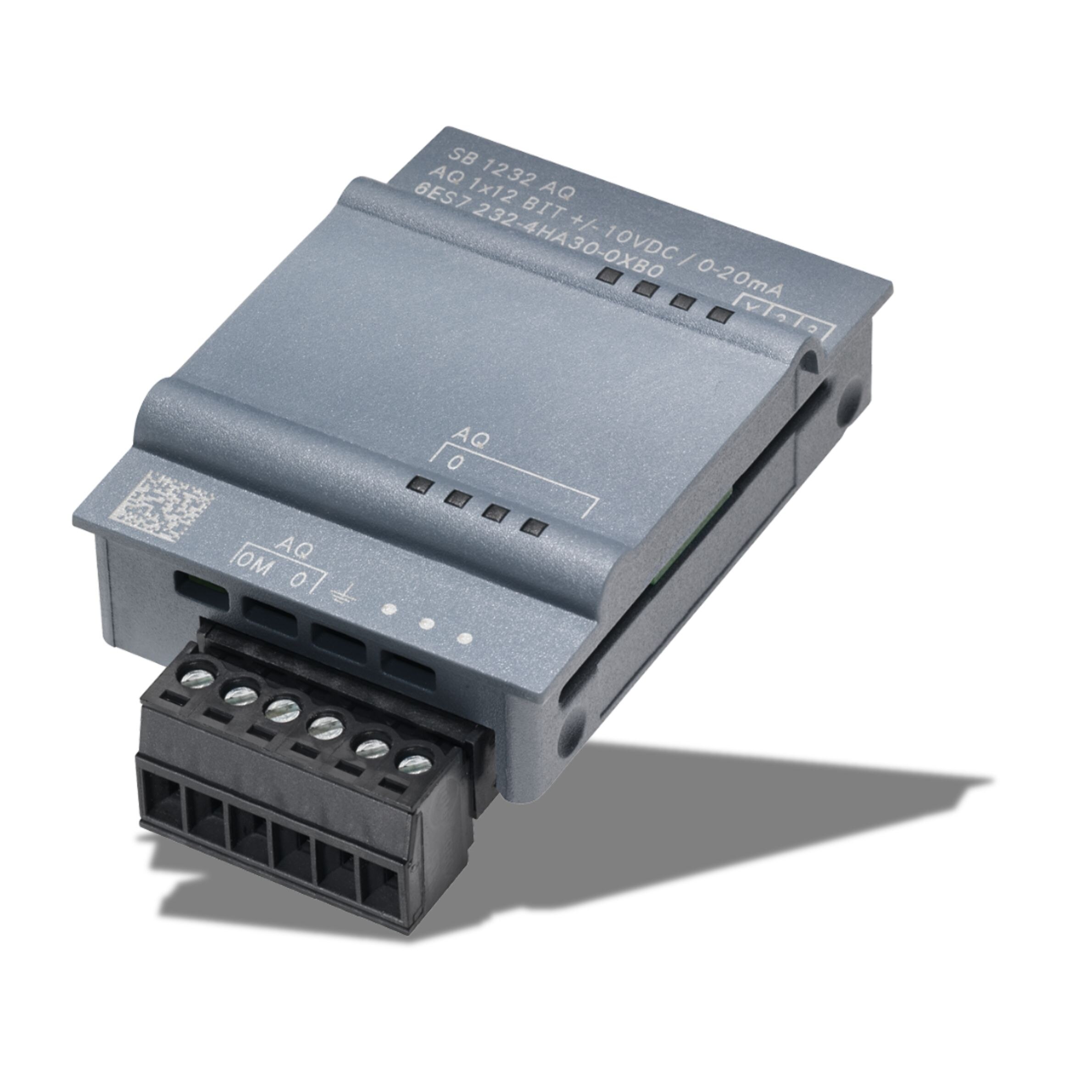

Signal Board SB 1232, 1 AO
Description
SIMATIC S7-1200 SB1232 ANALOG OUTPUT SIGNAL BOARD
❝AVAILABLE MODELS❞
Part Number: 6ES7232-4HA30-0XB0
Type: Signal Board
Product Name: SB1232 Signal Board, 1 AO
❝PRODUCT DETAILS❞
➜ SB1232 Analog Output Signal Board is designed for SIMATIC S7-1200 PLC systems, providing an additional analog output channel without increasing the overall controller width.
➜ The signal board is installed directly into the front slot of the S7-1200 CPU, enabling compact and cost-effective system expansion for analog control applications.
➜ It is ideal for controlling variable frequency drives, control valves, actuators, indicators, and other field devices requiring analog output signals.
➜ Designed for seamless integration with S7-1200 CPUs, the SB1232 ensures reliable signal generation, precise control, and efficient system performance.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7232-4HA30-0XB0
➜ Module Type: Analog Output Signal Board
➜ Analog Outputs: 1 AO
➜ Compact CPU-Mounted Design
➜ No Additional Mounting Space Required
➜ High-Accuracy Signal Output
➜ Easy Installation & Integration
➜ TIA Portal Compatibility
➜ Fast Signal Processing
➜ Industrial-Grade Reliability
❝PRODUCT APPLICATIONS❞
➜ Process Automation Systems
➜ Machine Automation Applications
➜ Industrial Control Panels
➜ Water & Wastewater Treatment Plants
➜ HVAC Control Systems
➜ Food & Beverage Industry
➜ Manufacturing Plants
➜ OEM Machinery
➜ Packaging Machinery
➜ Energy Management Systems
➜ Material Handling Equipment
➜ Factory Automation
❝PRODUCT❞
➜ 6ES7232-4HA30-0XB0 – SB1232 Signal Board, 1 AO
➜ SIMATIC S7-1200 PLC CPUs
➜ SB1221 Digital Input Signal Boards
➜ SB1222 Digital Output Signal Boards
➜ SB1231 Analog Input Signal Boards
➜ SM1231 Analog Input Modules
➜ SM1232 Analog Output Modules
➜ SIMATIC HMI Panels
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7232-4HA30-0XB0 | Signal Board SB 1232, 1 AO |
