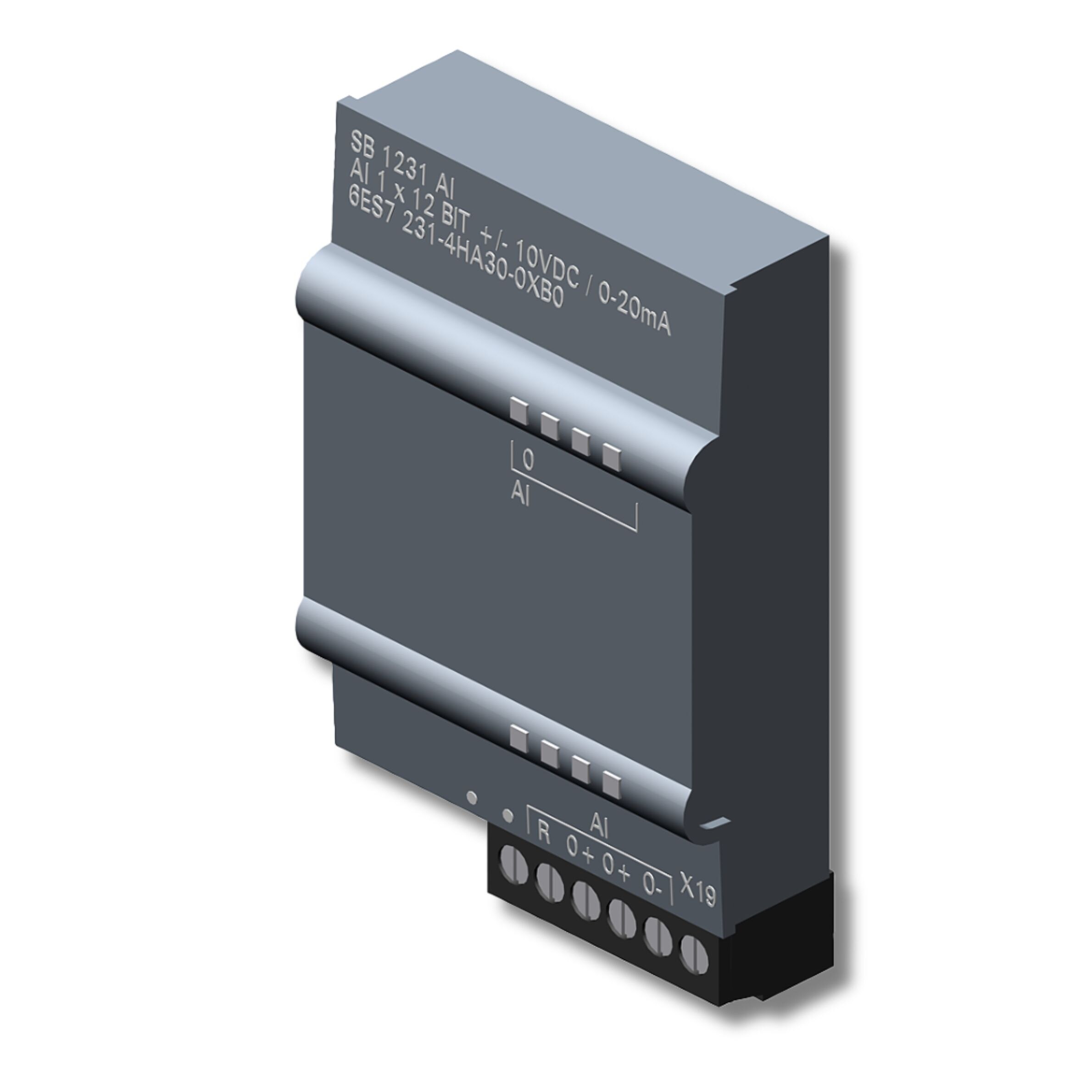

Signal Board SB 1231, 1 AI
Description
SIMATIC S7-1200 SB1231 ANALOG INPUT SIGNAL BOARD
❝AVAILABLE MODELS❞
Part Number: 6ES7231-4HA30-0XB0
Type: Signal Board
Product Name: SB1231 Signal Board, 1 AI
❝PRODUCT DETAILS❞
➜ SB1231 Analog Input Signal Board is designed for SIMATIC S7-1200 PLC systems, providing an additional analog input channel without increasing the overall controller width.
➜ The signal board is installed directly into the front slot of the S7-1200 CPU, enabling compact and cost-effective expansion for analog signal acquisition.
➜ It is ideal for connecting sensors and transmitters used in measuring temperature, pressure, flow, level, and other process variables in industrial automation applications.
➜ Designed for seamless integration with S7-1200 CPUs, the SB1231 ensures reliable signal processing and efficient system expansion.
❝KEY SPECIFICATIONS❞
➜ Part Number: 6ES7231-4HA30-0XB0
➜ Module Type: Analog Input Signal Board
➜ Analog Inputs: 1 AI
➜ Compact CPU-Mounted Design
➜ No Additional Mounting Space Required
➜ High-Accuracy Signal Acquisition
➜ Easy Installation & Integration
➜ TIA Portal Compatibility
➜ Fast Signal Processing
➜ Industrial-Grade Reliability
❝PRODUCT APPLICATIONS❞
➜ Process Automation Systems
➜ Machine Automation Applications
➜ Industrial Control Panels
➜ Water & Wastewater Treatment Plants
➜ HVAC Control Systems
➜ Food & Beverage Industry
➜ Manufacturing Plants
➜ OEM Machinery
➜ Packaging Machinery
➜ Energy Management Systems
➜ Material Handling Equipment
➜ Factory Automation
❝PRODUCT❞
➜ 6ES7231-4HA30-0XB0 – SB1231 Signal Board, 1 AI
➜ SIMATIC S7-1200 PLC CPUs
➜ SB1221 Digital Input Signal Boards
➜ SB1222 Digital Output Signal Boards
➜ SB1232 Analog Output Signal Boards
➜ SM1231 Analog Input Modules
➜ SM1232 Analog Output Modules
➜ SIMATIC HMI Panels
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 6ES7231-4HA30-0XB0 | Signal Board SB 1231, 1 AI |
