1FL6064-1AC61-2LA1

1FL6064-1AC61-2LA1

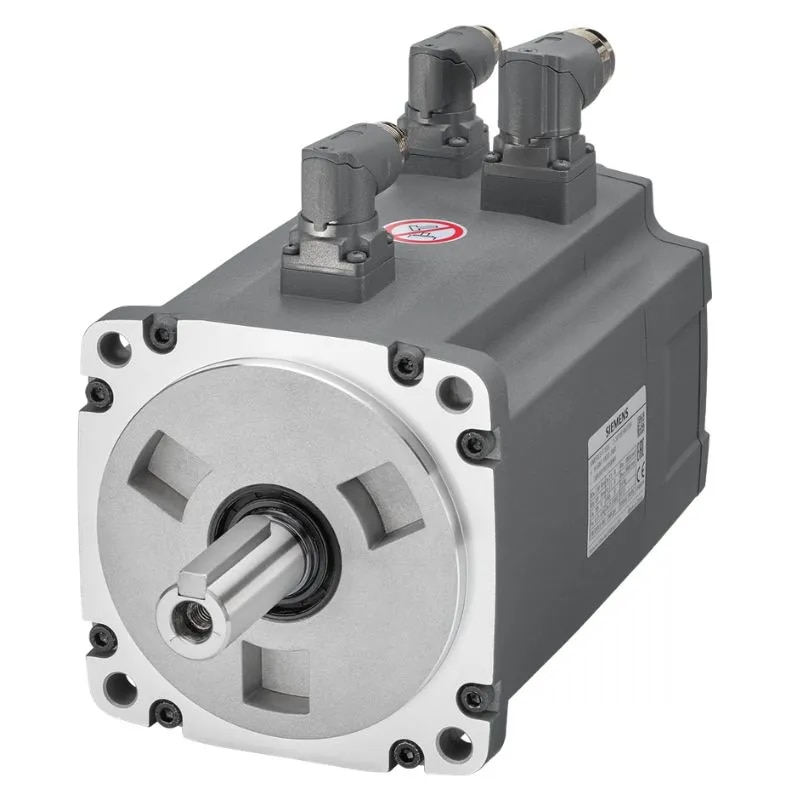

SIMOTICS S-1FL6 Servo Motor — 1.5 kW, 2000 rpm, Absolute Encoder

➜ BRAND: SIEMENS

❝PRODUCT DETAILS❞

➜ 1FL6064-1AC61-2LA1 is a Siemens SIMOTICS S-1FL6 servo motor designed for precise and reliable motion-control applications and compatible with SINAMICS V70 and SINAMICS V90 servo converters.

➜ The motor operates at 400 V, 3-phase AC and provides a rated power of 1.5 kW with a rated speed of 2000 rpm, making it suitable for industrial automation and precision positioning applications.

➜ It provides a standstill torque (M0) of 8 Nm and a rated torque (MN) of 7.16 Nm, supporting reliable torque performance during servo operation.

➜ The motor is equipped with an absolute encoder with 20-bit resolution and 12-bit multi-turn capability, providing accurate position feedback for demanding motion-control applications.

➜ It features a 65 mm shaft height, angle plug, and feather key for secure mechanical integration with compatible machine components.

➜ This version is supplied without a holding brake and has an IP65 degree of protection with sealing ring, providing protection suitable for industrial machine environments within the specified conditions.

❝SPECIFICATIONS❞

➜ Part Number: 1FL6064-1AC61-2LA1

➜ Product Type: SIMOTICS S-1FL6 Servo Motor

➜ Motor Series: SIMOTICS S-1FL6

➜ Operating Voltage: 400 V, 3 AC

➜ Rated Power (Pn): 1.5 kW

➜ Rated Speed (Nn): 2000 rpm

➜ Standstill Torque (M0): 8 Nm

➜ Rated Torque (MN): 7.16 Nm

➜ Shaft Height: 65 mm

➜ Connection: Angle Plug

➜ Encoder Type: Absolute Encoder

➜ Encoder Resolution: 20-bit

➜ Multi-Turn Resolution: 12-bit

➜ Shaft Design: With Feather Key

➜ Tolerance: N

➜ Holding Brake: Without Holding Brake

➜ Degree of Protection: IP65 with Sealing Ring

➜ Compatible Drives: SINAMICS V70 & SINAMICS V90

❝APPLICATIONS❞

➜ Precision Motion Control

➜ Servo Positioning Systems

➜ Packaging Machinery

➜ Material Handling Equipment

➜ Conveyor and Indexing Systems

➜ Machine Automation

➜ Industrial Positioning Applications

➜ SINAMICS V70 Servo Systems

➜ SINAMICS V90 Servo Systems

➜ Siemens PLC-Based Motion Control Systems
