1FL6034-2AF21-1AB1
Description
1FL6034-2AF21-1AB1

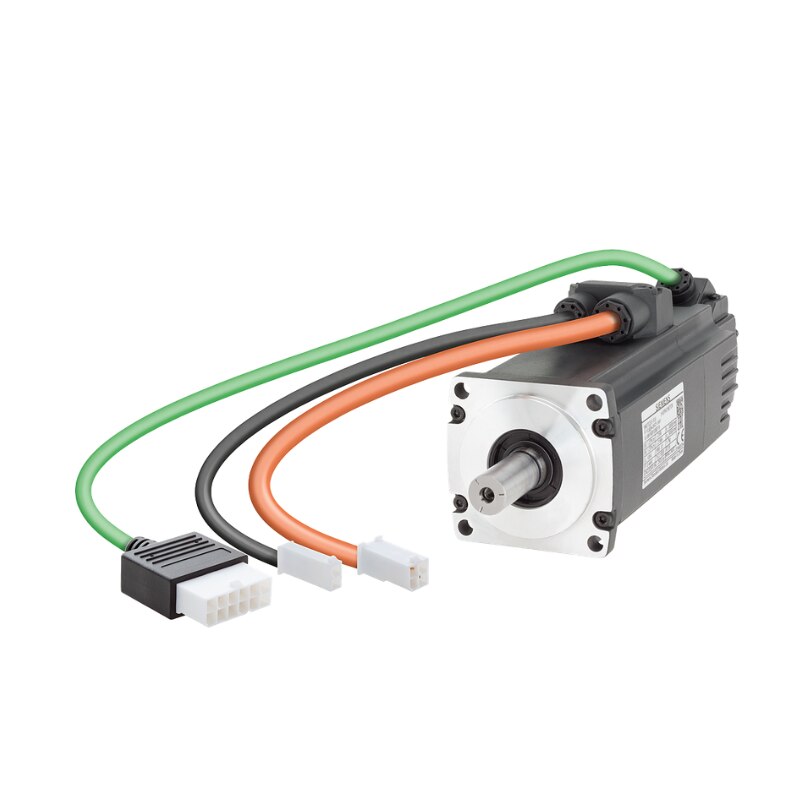

SIMOTICS S-1FL6 Servo Motor — 0.4 kW, 3000 rpm, With Holding Brake
➜ BRAND: SIEMENS
❝PRODUCT DETAILS❞
➜ 1FL6034-2AF21-1AB1 is a Siemens SIMOTICS S-1FL6 servo motor designed for precise and reliable motion-control applications and is compatible with SINAMICS V90 servo drives.
➜ The motor operates at 230 V, 3-phase AC and provides a rated power of 0.4 kW with a rated speed of 3000 rpm, making it suitable for compact industrial automation and positioning applications.
➜ It provides a standstill torque (M0) of 1.27 Nm and a rated torque (MN) of 1.27 Nm, supporting reliable torque performance during servo operation.
➜ The motor is equipped with an incremental TTL encoder with 2500 increments/revolution, providing feedback for accurate speed and position control.
➜ This version features a holding brake, which helps keep the motor shaft secured when the motor is stopped or when holding torque is required.
➜ The motor has a 30 mm shaft height, feather key, and IP65 degree of protection with sealing ring, making it suitable for industrial machine environments within the specified operating conditions.
❝SPECIFICATIONS❞
➜ Part Number: 1FL6034-2AF21-1AB1
➜ Product Type: SIMOTICS S-1FL6 Servo Motor
➜ Motor Series: SIMOTICS S-1FL6
➜ Rated Operating Voltage: 230 V, 3 AC
➜ Rated Power (Pn): 0.4 kW
➜ Rated Speed (Nn): 3000 rpm
➜ Standstill Torque (M0): 1.27 Nm
➜ Rated Torque (MN): 1.27 Nm
➜ Shaft Height: 30 mm
➜ Encoder Type: Incremental Encoder, TTL
➜ Encoder Resolution: 2500 increments/rev.
➜ Shaft Design: With Feather Key
➜ Tolerance: N
➜ Holding Brake: With Holding Brake
➜ Degree of Protection: IP65 with Sealing Ring
➜ Compatible Drive: SINAMICS V90
❝APPLICATIONS❞
➜ Precision Motion Control
➜ Servo Positioning Systems
➜ Packaging Machinery
➜ Material Handling Equipment
➜ Conveyor and Indexing Systems
➜ Machine Automation
➜ Industrial Positioning Applications
➜ SINAMICS V90 Servo Systems
➜ Siemens PLC-Based Motion Control Systems
❝CONTACT❞
➜ Supplier / OEM Stockist: Scalar Automation
➜ Location: Ahmedabad, Gujarat, India
Specifications
| MODEL NUMBER | 1FL6034-2AF21-1AB1 |
|---|---|
| DESCRIPTION | SERVOMOTOR 1FL6;3AC 230V |
