PEPPERL+FUCHS UB2000-F42-U-V15 AVAILABLE IN KALINGANAGAR
SCALAR AUTOMATION is a trusted supplier and dealer of Pepperl+Fuchs industrial automation products serving Kalinganagar, Odisha and industrial customers across India. We supply Pepperl+Fuchs ultrasonic sensors, proximity sensors, photoelectric sensors, inductive sensors, capacitive sensors, sensors and industrial automation components for OEMs, machine builders, panel manufacturers, system integrators, maintenance teams and industrial automation projects.

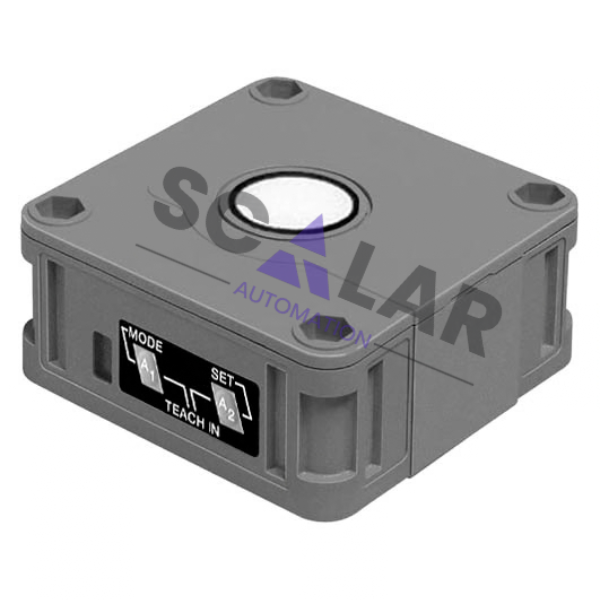

◇ PEPPERL+FUCHS UB2000-F42-U-V15 – ULTRASONIC SENSOR
● Model: UB2000-F42-U-V15
● Product: Pepperl+Fuchs Ultrasonic Sensor
● Sensor type: Ultrasonic sensor
● Single head system
● Sensing range: 60 ... 2000 mm
● Adjustment range: 90 ... 2000 mm
● Dead band / unusable area: 0 ... 60 mm
● Standard target plate: 100 mm × 100 mm
● Transducer frequency: approx. 175 kHz
● Response delay: approx. 150 ms
● Analog output: 0 ... 10 V
● Resolution: 0.7 mm
● Characteristic curve deviation: ±1% of full-scale value
● Repeat accuracy: ±0.1% of full-scale value
● Load impedance: >1 kΩ
● Operating voltage: 17 ... 30 V DC
● No-load supply current: ≤50 mA
● Bidirectional synchronization
● Synchronization frequency: common mode up to 30 Hz
● Multiplex operation: ≤30/n Hz
● TEACH-IN / program function
● Temperature compensation
● Interference suppression with adjustable sound cone
● Mode of operation adjustable
● Connector: M12 × 1, 5-pin
● Protection rating: IP54 according to Pepperl+Fuchs product documentation
● Ambient temperature: -25 ... 70 °C
● Storage temperature: -40 ... 85 °C
● Dimensions: 80 mm × 80 mm × 34 mm
● Weight: approx. 140 g
● Suitable for industrial distance measurement and object detection applications
The Pepperl+Fuchs UB2000-F42-U-V15 is an ultrasonic sensor with a 60 ... 2000 mm sensing range, 0 ... 10 V analog output, TEACH-IN functionality, temperature compensation and synchronization options. Pepperl+Fuchs specifies a 0 ... 60 mm dead band, approximately 175 kHz transducer frequency, 0.7 mm resolution and 17 ... 30 V DC operating voltage.
The sensor provides a 5-pin M12 × 1 connection, adjustable evaluation limits and a wide sound lobe as the default configuration. It is designed for industrial object detection, distance measurement, level measurement and automation applications requiring non-contact ultrasonic sensing.
◇ PEPPERL+FUCHS ULTRASONIC SENSOR SUPPLIER IN KALINGANAGAR
SCALAR AUTOMATION supplies Pepperl+Fuchs ultrasonic sensors, UB-series sensors, distance sensors, proximity sensors and industrial automation components across Kalinganagar and Odisha.
For UB2000-F42-U-V15 requirements, SCALAR AUTOMATION supports OEMs, machine manufacturers, panel builders, system integrators, maintenance teams, engineering companies and industrial automation users.
◇ PEPPERL+FUCHS ULTRASONIC SENSOR DEALER IN KALINGANAGAR
SCALAR AUTOMATION supplies Pepperl+Fuchs UB2000 ultrasonic sensors, ultrasonic distance sensors, analog-output sensors, proximity sensors and industrial automation components for object detection, distance measurement, level measurement, machine automation, factory automation, process monitoring, OEM machinery, conveyor systems and industrial control applications.
◇ PEPPERL+FUCHS SENSOR SUPPLIER IN ODISHA
For UB2000-F42-U-V15, SCALAR AUTOMATION supports industrial customers requiring Pepperl+Fuchs ultrasonic sensors, distance measurement sensors and industrial automation components across Kalinganagar, Jajpur, Bhubaneswar, Cuttack, Angul, Rourkela, Jharsuguda, Sambalpur, Dhenkanal, Balasore, Paradeep and other industrial locations in Odisha.
◇ INDUSTRIAL ULTRASONIC SENSOR SUPPLIER – SCALAR AUTOMATION
